KL-T9103 ICU Pendant — Modular Ceiling Supply Unit with Comprehensive Optional Accessories

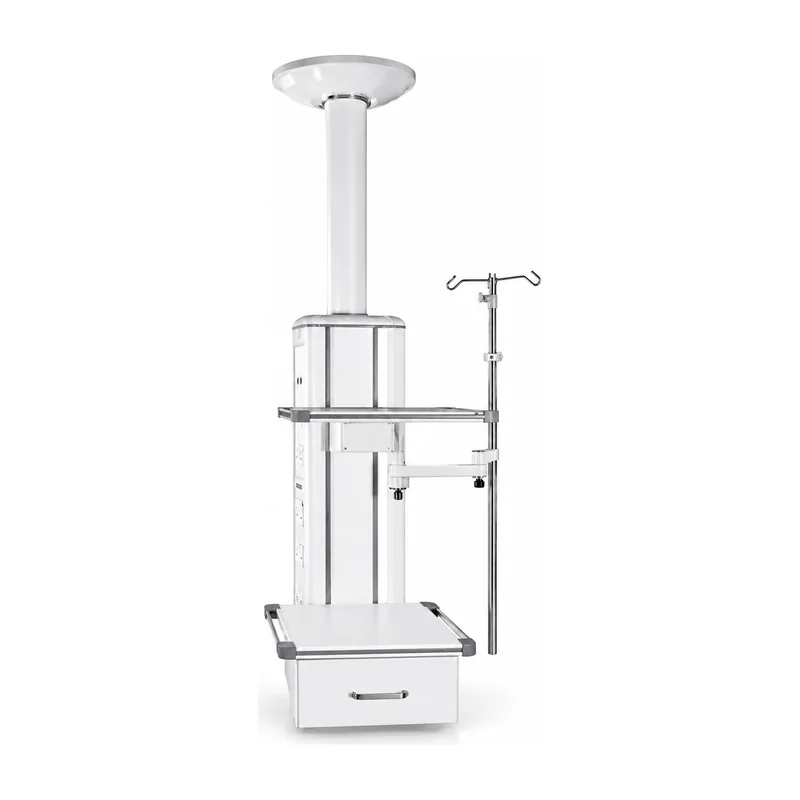

Quick answer. The Keling KL-T9103 is an ICU pendant (medical hanging tower) designed for ICU rooms and general operating rooms. It provides four power outlets, one internet outlet, one oxygen outlet, one suction gas outlet and one compressed air outlet via German standard terminals, and supports an extensive range of optional accessories including a monitor arm, endoscopic stand, wire basket, hand sanitizer stand and tray — making it one of the most accessory-configurable pendants in the Keling Medical range. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Power outlets: 4
Data outlets: 1 internet outlet
Application: ICU room, general operating room
Tray: Aluminum molding, non-slip texture

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-T9103 ICU pendant is the modular-accessory variant of the KL-T9100, offering the same reliable ceiling-mounted utility supply in ICU rooms and general operating rooms but with an expanded catalog of optional attachments that can be configured at time of purchase or added later. The core pendant column delivers the essential clinical services — power, oxygen, compressed air and suction gas — through German standard terminals, while optional brackets, stands and holders extend the pendant's function to cover monitoring display positioning, endoscopic equipment management, hygiene stations and general storage.

The optional monitor arm integrates a rotatable, height-adjustable display support directly onto the pendant column, allowing patient monitoring screens to be positioned precisely for the attending nurse or physician without a floor-mounted stand. An optional endoscopic stand transforms the pendant into a hub for endoscopic accessories and scopes, keeping the floor area clear in rooms where endoscopic procedures are performed alongside critical care. A wire basket accessory provides a hygienic, visible storage compartment for clinical consumables, and a dedicated hand sanitizer stand bracket mounts the dispenser directly on the pendant — placing hand hygiene at the point of care within the infection-control workflow.

Structurally, the KL-T9103 shares all the construction attributes of the KL-T series: high-strength aluminium alloy cabinet formed by one-piece extrusion molding, primary oxidation surface treatment, non-slip aluminum tray, mechanical friction damping brake for horizontal rotation, and independently routed gas, power and data channels. German standard gas connectors are rated for over 20,000 cycles. The overall pendant column layout keeps the core utility panel and accessory mounting points logically organized, so clinical staff can operate all functions efficiently without searching for connections or accessories.

Quick facts

The Keling KL-T9103 is an ICU pendant designed for ICU rooms and general operating rooms, with the same base utility configuration as the KL-T9100.
The KL-T9103 supports a wider optional accessory set than the KL-T9100, including a monitor arm, endoscopic equipment stand, wire basket and hand sanitizer stand.
Gas terminals follow the German standard with over 20,000 insertion and pull-out cycle ratings.
Gas pipelines, power supply and computer communication lines are routed without mutual interference in separate internal channels.
The control cabinet is formed from imported high-strength aluminium alloy using one-piece extrusion molding with primary oxidation surface treatment.
The KL-T9103 is manufactured by Keling Medical, a Chinese medical equipment manufacturer established in 1996.

Key features

Extensive optional accessory compatibility
monitor arm, endoscopic stand, tray, wire basket and hand sanitizer stand brackets all available as optional add-ons.
Optional monitor arm
adds a rotatable, adjustable display support for patient monitoring equipment directly on the pendant column.
Optional endoscopic stand
converts the pendant into an endoscopy-support hub, keeping scopes and accessories organized at ceiling level.
Optional wire basket and hand sanitizer stand
adds hygienic storage and in-workflow hand sanitizer access at the point of care.
One-piece aluminium alloy cabinet
imported high-strength alloy; extrusion molding and primary oxidation treatment for durability and hygiene.
Mechanical friction damping brake
arm holds at any position without drift.
German standard gas terminals
rated for over 20,000 insertion and pull-out cycles; independent routing of gas, power and data.
Standard utility configuration
4 power outlets, 1 internet outlet, 1 oxygen, 1 suction gas, 1 compressed air.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-T9103

KL-T9103 technical specifications
Model	KL-T9103
Product type	ICU pendant (medical hanging tower)
Application	ICU room, general operating room
Cabinet material	Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment
Tray	Aluminum molding, non-slip texture
Brake	Mechanical friction damping brake
Gas terminals	German standard (over 20,000 insertion/pull-out cycles)
Power outlets	4
Data outlets	1 internet outlet
Gas outlets	1 oxygen, 1 suction gas, 1 compressed air (German style terminal; optional gases)
Optional accessories	Monitor arm, endoscopic stand, tray, wire basket, hand sanitizer stand

Applications

The KL-T9103 suits ICU bays and general operating rooms where flexible accessory configuration is valued alongside standard ceiling utility supply. The monitor arm option makes it particularly practical for ICU bays where screen-cluttered walls and floor stands are being eliminated. The endoscopic stand option suits combined ICU/procedure environments. The hand sanitizer stand option supports WHO hand hygiene compliance programs at the bedside.

Questions buyers ask

What is the Keling KL-T9103 ICU pendant used for?

The KL-T9103 is a ceiling-mounted ICU pendant providing power, oxygen, compressed air and suction gas at bedside in ICU rooms and general ORs. Its modular accessory system — including optional monitor arms, endoscopic stands, wire baskets and hand sanitizer stands — allows the pendant to be configured as a fully equipped bedside support hub.

What optional accessories are available for the KL-T9103?

Available optional accessories include a monitor arm (for patient display positioning), an endoscopic stand (for scope and endoscopy accessory management), a tray (additional working surface), a wire basket (hygienic consumable storage) and a hand sanitizer stand (in-workflow hygiene access). These can be specified at order or added retrospectively.

How does the KL-T9103 differ from the KL-T9100?

Both models share the same base utility configuration (4 power outlets, internet, oxygen, suction gas, compressed air) and the same aluminium alloy cabinet construction. The KL-T9103 is distinguished by its wider range of optional accessories — particularly the monitor arm, endoscopic stand and hand sanitizer stand — making it the preferred choice when bedside clinical function needs to extend beyond basic utility supply.

Can distributors order the KL-T9103 pre-configured with accessories?

Yes. Keling Medical supports pre-configured orders for both the base pendant and accessory packages. International distributors and hospital procurement teams can specify required accessories at the quotation stage. Contact Keling Medical at https://www.kelingmed.com.
