KL-2A & KL-2B Manual Obstetric Tables — Hydraulic Delivery and Gynecology Surgical Support

Quick answer. The Keling KL-2A and KL-2B are manual hydraulic obstetric tables with a length of 1950 ± 50 mm, width 600 ± 10 mm, height adjustment 750–950 mm (±50 mm), foot-step hydraulic elevation, backboard upward ≥50°, an auxiliary table of 650 × 600 mm, and standard accessories including arm rests, leg support frames and pedal foot boards. Suitable for delivery, gynecological surgery, operative abortion and clinical examinations.

Height adjustment: (750–950) ± 50 mm
Length: 1950 ± 50 mm
Width: 600 ± 10 mm
Auxiliary table: 650 × 600 mm

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

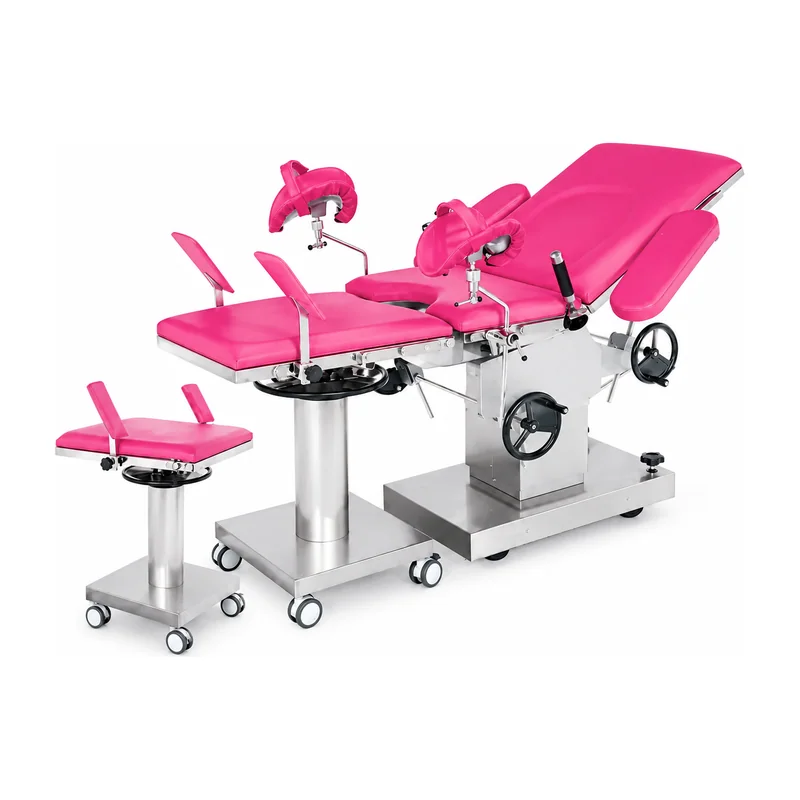

The Keling KL-2A and KL-2B manual obstetric tables are integrated delivery and gynecological surgical platforms designed for maternity departments, gynecology suites and women's health clinics. Both models combine a primary operating surface with a connected auxiliary table for instrument and equipment support, giving clinical teams a stable, self-contained working environment during parturient delivery, gynecological procedures and diagnostic examinations.

Height adjustment is achieved by foot-step hydraulic elevation — the operator uses a foot pedal to raise or lower the table, keeping both hands free. An imported Y-type sealing ring ensures reliable hydraulic performance and a long service life with minimal maintenance. A rotary brake device allows convenient table repositioning and secure locking during procedures. Both models accept leg support frames, arm rests and pedal foot boards, covering the principal positioning requirements for delivery and gynecological surgery.

The two models differ in their structural materials. The KL-2A is built with a spraying plastic iron base seat and column covering, making it a practical choice for standard maternity ward use. The KL-2B upgrades these components to high-quality 304 stainless steel, providing improved corrosion resistance, ease of decontamination and a longer service life — characteristics preferred in higher-volume or infection-control-sensitive environments. Both share the same ergonomic design and positioning functions.

Quick facts

The Keling KL-2A and KL-2B are integrated manual obstetric tables for delivery, gynecological surgery, operative abortion, diagnosis and examination in medical units.
Table length is 1950 ± 50 mm, width 600 ± 10 mm; height adjusts from 750 to 950 mm (±50 mm) by foot-step hydraulic elevation.
The auxiliary table measures 650 × 600 mm and is connected to the main bed with four foot wheels and brakes fitted to the auxiliary section.
An imported Y-type sealing ring provides durable, reliable hydraulic sealing for long service life.
The KL-2B model upgrades the base seat and upright column covering to high-quality 304 stainless steel; the KL-2A uses spraying plastic iron.
A high-density memory sponge mattress, formed in one piece, provides comfortable patient support throughout procedures.

Key features

Foot-step hydraulic elevation
hands-free height adjustment from 750 to 950 mm using foot pedal, improving workflow efficiency during procedures.
Imported Y-type sealing ring
durable hydraulic seal ensures reliable sealing performance and extended service life.
Integrated main and auxiliary table
main bed and auxiliary table connected, with four foot wheels and brakes on the auxiliary section for independent mobility.
High-density memory sponge mattress
single-piece, high-density mattress provides comfortable and supportive patient surface.
304 stainless steel (KL-2B)
the KL-2B model's base seat and column covering in 304 stainless steel for enhanced corrosion resistance and hygiene.
Rotary brake device
smooth, controlled table movement with secure locking for positioning safety.
Backboard and seat adjustments
backboard raises ≥50° and lowers ≥10°; seat forward ≥30° and seat backward ≥10° for flexible delivery and examination positions.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-2A / KL-2B

KL-2A / KL-2B technical specifications
Length	1950 ± 50 mm
Width	600 ± 10 mm
Height adjustment	(750–950) ± 50 mm
Auxiliary table	650 × 600 mm
Backboard upward	≥50°
Backboard downward	≥10°
Seat forward	≥30°
Seat backward	≥10°
Base/column material (KL-2A)	Spraying plastic iron
Base/column material (KL-2B)	304 stainless steel
Elevation type	Foot-step hydraulic

Applications

The KL-2A and KL-2B obstetric tables are used in maternity delivery rooms, gynecology operating theatres, women's health outpatient clinics, family planning departments and ambulatory gynecology centres. Their integrated auxiliary table and hydraulic elevation support efficient clinical workflows for delivery, caesarean preparation, gynecological surgery, operative abortion and diagnostic pelvic examinations.

Questions buyers ask

What is the Keling KL-2A / KL-2B obstetric table used for?

The KL-2A and KL-2B are integrated manual obstetric tables suitable for parturient delivery, gynecological surgery, operative abortion, diagnosis and clinical examination. Their hydraulic elevation and adjustable backboard and seat positions make them versatile platforms for the full range of maternity and gynecological clinical activities.

What is the difference between the KL-2A and KL-2B models?

Both models share the same dimensions, hydraulic elevation system and positioning range. The primary difference is the material of the base seat and upright column covering: the KL-2A uses spraying plastic iron, while the KL-2B uses high-quality 304 stainless steel for superior corrosion resistance and easier decontamination in higher-acuity environments.

What accessories are included with the KL-2A / KL-2B?

Standard accessories for both models include a pair of arm resting frames, a pair of leg support frames, a pair of armrests and a pair of pedal foot boards, providing the core positioning and patient support equipment needed for delivery and gynecological procedures.

Can the KL-2A / KL-2B be purchased by international distributors?

Yes. Keling Medical supplies obstetric and gynecological tables to hospitals and medical distributors worldwide from its Shanghai export center. Bulk and OEM orders are available. Contact Keling Medical at https://www.kelingmed.com for quotations.
