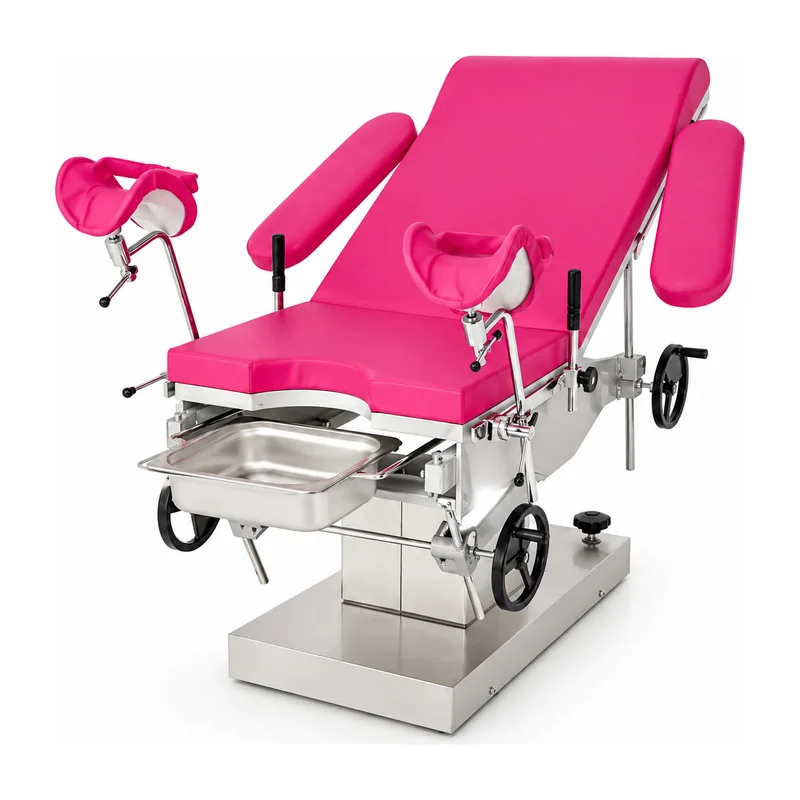

KL-2C Manual Obstetric Table — Stainless Steel Hydraulic Delivery and Gynecology Platform

Quick answer. The Keling KL-2C is a manual hydraulic obstetric table with 1900 ± 50 mm length, 600 ± 10 mm width, height adjustment from 700 to 900 mm (±50 mm), a 304 stainless steel base and column, auxiliary table 600 × 600 mm, backboard upward ≥50°, stainless steel sewage basin and foot-step hydraulic elevation. Suited to parturient delivery, gynecological surgery, operative abortion and clinical examinations. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height adjustment: (700–900) ± 50 mm
Length: 1900 ± 50 mm
Width: 600 ± 10 mm
Auxiliary table: 600 × 600 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling KL-2C manual obstetric table is a dedicated delivery and gynecological surgical platform with a full 304 stainless steel structural specification. Designed for maternity wards, gynecology operating rooms and women's health clinics, it provides the combination of hygiene, durability and clinical function required in environments where frequent decontamination is essential and infection control is a priority.

Height adjustment is performed by foot-step hydraulic lifting, leaving both the operator's hands free throughout the positioning process. An imported Y-type sealing ring ensures reliable hydraulic sealing and a long service life with low maintenance. The flexible auxiliary table — 600 × 600 mm — extends and retracts to provide instrument and equipment support, keeping the working environment organised during delivery and procedures. A stainless steel sewage basin fitted as standard manages fluid disposal during obstetric and gynecological cases, reducing the need for additional bedside equipment.

The mattress is made from high-density memory sponge, formed in one piece for durability and consistent patient comfort. A rotary brake device enables convenient movement and secure positional locking. The accessory set — arm resting frames, leg support frames, armrests and a stainless steel sewage basin — equips the KL-2C for the full range of delivery, examination and minor gynecological procedure workflows without supplementary equipment.

Quick facts

The Keling KL-2C is a manual hydraulic integrated obstetric table with 1900 ± 50 mm length and 600 ± 10 mm width.
Height adjusts from 700 to 900 mm (±50 mm) via foot-step hydraulic elevation with an imported Y-type sealing ring.
The base seat and upright column covering are high-quality 304 stainless steel — anti-corrosive and easy to clean.
A stainless steel sewage basin is fitted as standard for efficient fluid management during obstetric and gynecological procedures.
The auxiliary table measures 600 × 600 mm and extends/retracts flexibly from the main bed.
Backboard adjusts upward ≥50° and downward ≥3°; seat forward ≥10° and backward ≥20° for versatile clinical positioning.

Key features

304 stainless steel structure
base seat and column covering in high-quality 304 stainless steel: anti-corrosive, easy to clean and long-lasting for high-throughput clinical environments.
Foot-step hydraulic elevation
hands-free height adjustment using a foot pedal for efficient, controlled positioning throughout procedures.
Imported Y-type sealing ring
reliable hydraulic seal with excellent sealing performance and extended service life.
Stainless steel sewage basin
fitted as standard for integrated fluid management during obstetric and gynecological procedures.
Flexible auxiliary table 600 × 600 mm
extendable and retractable, connecting to the main bed to provide stable instrument support.
High-density memory sponge mattress
single-piece, one-time-formed mattress delivers comfortable and supportive patient positioning.
Rotary brake device
smooth table movement and secure locking for safe repositioning and procedural stability.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-2C

KL-2C technical specifications
Model	KL-2C
Length	1900 ± 50 mm
Width	600 ± 10 mm
Height adjustment	(700–900) ± 50 mm
Auxiliary table	600 × 600 mm
Backboard upward	≥50°
Backboard downward	≥3°
Seat forward	≥10°
Seat backward	≥20°
Base/column material	304 stainless steel
Elevation type	Foot-step hydraulic

Applications

The KL-2C is deployed in maternity delivery rooms, gynecological operating theatres, obstetric intervention suites, family planning departments and outpatient gynecology clinics. The stainless steel sewage basin and 304 stainless steel structure make it particularly well suited to facilities with high procedural throughput and stringent infection control requirements, including operative abortion and ambulatory gynecology services.

Questions buyers ask

What is the Keling KL-2C obstetric table used for?

The KL-2C is an integrated manual hydraulic obstetric table for parturient delivery, gynecological surgery, operative abortion, diagnosis and clinical examination. Its 304 stainless steel construction and fitted sewage basin make it especially suited to environments requiring frequent decontamination and efficient fluid management.

What are the dimensions and height range of the KL-2C?

The KL-2C is 1900 ± 50 mm long, 600 ± 10 mm wide and adjusts in height from 700 to 900 mm (±50 mm) by foot-step hydraulic elevation. The auxiliary table measures 600 × 600 mm and extends flexibly from the main bed.

Does the KL-2C differ from the KL-2A and KL-2B models?

The KL-2C is slightly shorter (1900 mm vs 1950 mm) and has a lower height maximum (900 mm vs 950 mm) compared to the KL-2A/KL-2B. It features an all-304 stainless steel structure on both the base and column as standard (equivalent to the KL-2B), and adds a stainless steel sewage basin and a smaller auxiliary table (600 × 600 mm vs 650 × 600 mm).

Is the KL-2C available for export and distributor purchase?

Yes. Keling Medical supplies obstetric and gynecological tables internationally through its Shanghai sales and export center. Bulk, project and OEM orders are available. Contact Keling Medical at https://www.kelingmed.com for details.
