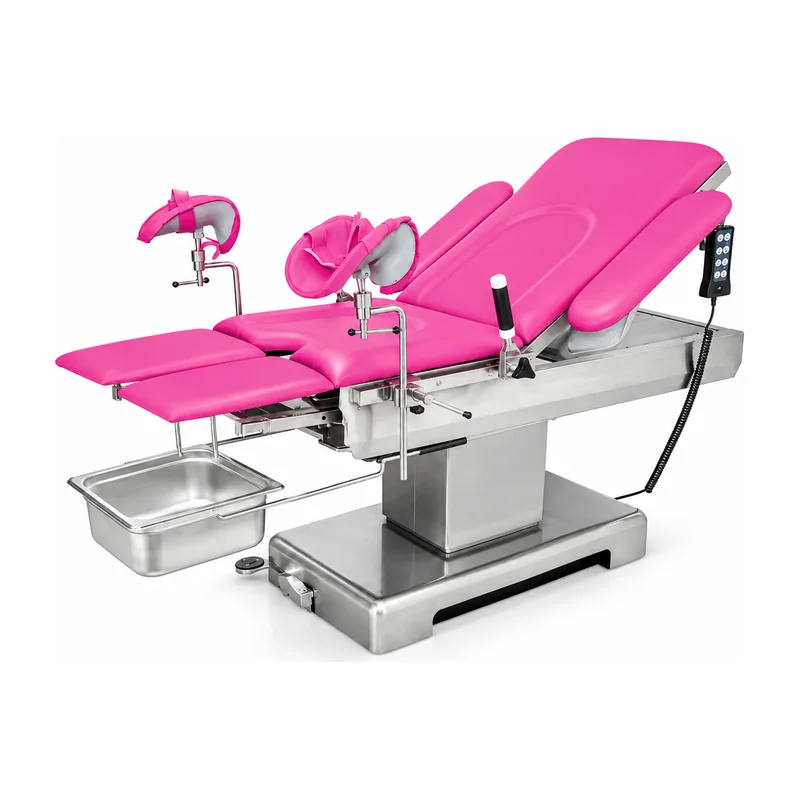

KL-2E Electric Obstetric Table — Premium Electric Delivery and Gynecological Surgical Platform

Quick answer. The Keling KL-2E is a fully electric integrated obstetric table with 2000 ± 50 mm length, 600 ± 10 mm width, height adjustment from 700 to 950 mm (±50 mm), Trendelenburg/reverse-Trendelenburg ≥10°/≥15°, backboard upward ≥50°, stainless steel construction, auxiliary platform 480 × 550 mm, foot treadle brake device and 220V ± 22V power supply. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for delivery rooms and gynecological operating theatres.

Height adjustment: (700–950) ± 50 mm
Input power VA: 150 ± 10%
Power supply AC: 220V ± 22V 50Hz ± 1Hz
Dimension of auxiliary platform: 480 × 550 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling KL-2E electric obstetric table represents a refined version of the KL-2D, offering a lower minimum table height (700 mm vs 750 mm) for improved ergonomic access to shorter or paediatric patients, and an extended reverse Trendelenburg angle (≥15° vs ≥10°) for broader clinical positioning. Like the KL-2D, all functions are driven by an imported brand electric motor controlled by a foot-stepping remote controller, keeping both hands free throughout all clinical activities.

The 304 stainless steel base and column construction ensures robust corrosion resistance and straightforward decontamination between cases — an important characteristic for high-throughput maternity and gynecology departments. The integrated stainless steel auxiliary table (480 × 550 mm) extends and retracts flexibly from the main bed body, providing instrument and equipment support close to the working field without requiring a separate trolley. A foot treadle brake device locks the table securely during procedures.

A high-density memory sponge mattress, formed in one piece, delivers comfortable patient support across the full duration of delivery and gynecological procedures. The stainless steel sewage basin fitted as standard manages fluid disposal efficiently during obstetric cases. The KL-2E is powered by 220V ± 22V, 50Hz ± 1Hz at 150 ± 10% VA, consistent with standard hospital electrical supplies worldwide.

Quick facts

The Keling KL-2E is a fully electric obstetric table with a lower minimum height of 700 mm (vs 750 mm on the KL-2D) for greater ergonomic flexibility.
Table length is 2000 ± 50 mm, width 600 ± 10 mm; all actions are controlled by an imported brand electric motor via remote controller.
Trendelenburg is ≥10° and reverse Trendelenburg is ≥15°; backboard raises ≥50°.
The base seat and upright column covering are high-quality 304 stainless steel for corrosion resistance and easy cleaning.
A whole stainless steel hidden auxiliary table (480 × 550 mm) with flexible extension and retraction is integrated into the main bed.
Standard accessories include arm resting frames, leg support frames, armrests, stainless steel sewage basin and a foot-stepping remote controller.

Key features

Electric motor drive with lower minimum height
height range 700–950 mm (±50 mm), extending ergonomic reach compared with the KL-2D's 750 mm minimum.
Extended reverse Trendelenburg ≥15°
wider reverse tilt angle compared to the KL-2D (≥10°), providing more flexibility for head-end elevation during delivery and examination.
Whole stainless steel hidden auxiliary table 480 × 550 mm
integrates flexibly with the main bed; extends and retracts for instrument support without additional equipment.
304 stainless steel base and column
anti-corrosive and easy to clean for infection control in high-throughput environments.
Foot-stepping remote controller
imported brand motor controlled via foot pedal remote for hands-free electric positioning.
High-density one-piece mattress
single-formed memory sponge provides durable and comfortable patient support.
Stainless steel sewage basin
standard equipment for integrated fluid management during obstetric and gynecological procedures.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-2E

KL-2E technical specifications
Model	KL-2E
Length	2000 ± 50 mm
Width	600 ± 10 mm
Height adjustment	(700–950) ± 50 mm
Dimension of auxiliary platform	480 × 550 mm
Trendelenburg / Rev-Trend	≥10° / ≥15°
Backboard upwards	≥50°
Drive type	Electric (imported brand motor)
Control	Foot-stepping remote controller
Input power VA	150 ± 10%
Power supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-2E is used in hospital delivery rooms, gynecological operating theatres, obstetric intervention suites, family planning clinics and women's health outpatient centres. The lower minimum height and wider reverse Trendelenburg make it particularly suitable for mixed-patient environments and departments serving patients of varied stature or where ergonomic flexibility is a priority.

Questions buyers ask

What is the Keling KL-2E electric obstetric table used for?

The KL-2E is a fully electric integrated obstetric table for parturient delivery, gynecological surgery, operative abortion and clinical examination. Its electric drive, lower height minimum and extended reverse Trendelenburg angle make it a versatile choice for maternity departments and gynecology suites requiring a wider positional range than standard electric models.

How does the KL-2E differ from the KL-2D?

The KL-2E has a lower minimum table height (700 mm vs 750 mm), a wider reverse Trendelenburg angle (≥15° vs ≥10°) and a slightly smaller auxiliary platform (480 × 550 mm vs 650 × 600 mm) compared to the KL-2D. Both models share the same electric motor drive, 304 stainless steel construction and remote controller operation.

What accessories are standard with the KL-2E?

The KL-2E includes a pair of arm resting frames, a pair of leg support frames, a pair of armrests, a stainless steel sewage basin and a foot-stepping remote controller as standard, providing complete delivery, examination and gynecological procedure support.

Can international distributors and hospitals order the KL-2E?

Yes. Keling Medical exports electric obstetric tables to hospitals and distributors worldwide from its Shanghai sales and export center. OEM, bulk and project orders are supported. Contact Keling Medical at https://www.kelingmed.com for pricing and configuration options.
