KL-2D Electric Obstetric Table — Fully Electric Delivery and Gynecological Surgery Platform

Quick answer. The Keling KL-2D is a fully electric integrated obstetric table with 2000 ± 50 mm length, 600 ± 10 mm width, height adjustment from 750 to 950 mm (±50 mm), remote controller operation, Trendelenburg/reverse-Trendelenburg ≥10°/≥10°, backboard upward ≥50°, leg plate abduction ≥90°, auxiliary platform 650 × 600 mm and a 220V ± 22V 50Hz power supply. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for delivery rooms and gynecological operating theatres.

Height adjustment: (750–950) ± 50 mm
Input power VA: 150 ± 10%
Power supply AC: 220V ± 22V 50Hz ± 1Hz
Dimension of auxiliary platform: 650 × 600 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

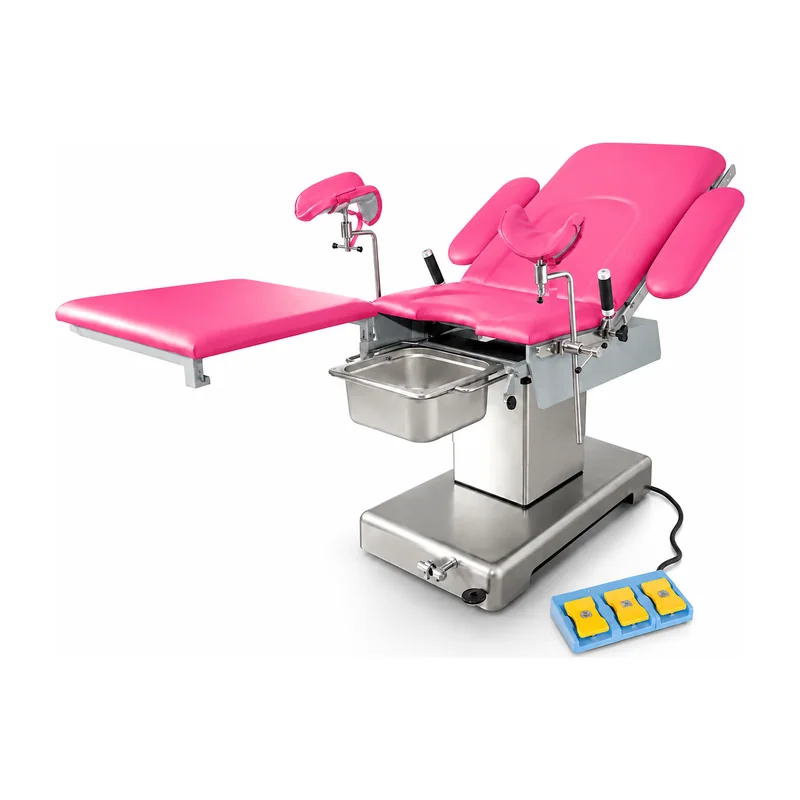

The Keling KL-2D electric obstetric table is the electric-drive model in the KL-2 series, replacing the manual foot-step hydraulic system of the KL-2A, KL-2B and KL-2C with an imported brand electric motor controlled via a foot-stepping remote controller. This provides smoother, more precise height and position adjustments with less physical effort from the clinical team — a meaningful advantage in high-volume delivery rooms and gynecological operating theatres where staff efficiency and patient throughput are priorities.

The base seat and upright column covering are made from high-quality 304 stainless steel, providing excellent corrosion resistance and straightforward surface decontamination between cases. The stainless steel hidden auxiliary table — 650 × 600 mm — extends and retracts flexibly from the main bed body, giving clinicians immediate instrument and accessory support without a separate trolley. A foot treadle brake device provides hands-free table locking during clinical activities.

A high-density memory sponge mattress, formed in one piece, provides consistent patient comfort during procedures of all durations. The standard accessory package — arm resting frames, leg support frames, armrests, stainless steel sewage basin and foot-stepping remote controller — equips the KL-2D for delivery, operative and examination workflows from the moment of installation. Power supply is 220V ± 22V, 50Hz ± 1Hz with 150 ± 10% VA input power.

Quick facts

The Keling KL-2D is a fully electric obstetric table for delivery, gynecological surgery, operative abortion, diagnosis and examination.
All positioning functions are controlled by a remote controller and foot-treadle brake device.
Table length is 2000 ± 50 mm, width 600 ± 10 mm; height adjusts from 750 to 950 mm (±50 mm) via imported brand electric motor.
The auxiliary platform measures 650 × 600 mm and is made from stainless steel with hidden flexible extension and retraction.
Trendelenburg and reverse Trendelenburg are both ≥10°; leg plate abducts ≥90°; backboard raises ≥50°.
A stainless steel sewage basin and full accessory set are included as standard equipment.

Key features

Electric motor drive
all functions controlled via imported brand electric motor and foot-stepping remote controller for smooth, precise, hands-free adjustment.
304 stainless steel construction
base seat and column covering in high-quality 304 stainless steel for durability, corrosion resistance and easy decontamination.
Hidden stainless steel auxiliary table 650 × 600 mm
extends and retracts flexibly from the main bed; stainless steel surface for hygiene.
Stainless steel sewage basin
integrated fluid management for obstetric and gynecological procedures.
High-density memory sponge mattress
single-piece one-time-formed mattress for comfortable and supportive patient positioning.
Trendelenburg positioning ≥10°
Trendelenburg and reverse Trendelenburg both ≥10° for standard surgical and delivery positioning.
Leg plate abduction ≥90°
supports lithotomy positioning for gynecological examination and minor surgical procedures.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-2D

KL-2D technical specifications
Model	KL-2D
Length	2000 ± 50 mm
Width	600 ± 10 mm
Height adjustment	(750–950) ± 50 mm
Dimension of auxiliary platform	650 × 600 mm
Trendelenburg / Rev-Trend	≥10° / ≥10°
Backboard upwards	≥50°
Leg plate abduction	≥90°
Drive type	Electric (imported brand motor)
Control	Foot-stepping remote controller
Input power VA	150 ± 10%
Power supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-2D electric obstetric table is used in hospital delivery rooms, gynecological operating theatres, obstetric intervention suites, family planning departments and women's health outpatient clinics. Its electric drive is particularly valued in high-throughput delivery units and gynecology centres where the efficiency of electric position adjustment and the hygiene of the all-stainless-steel construction deliver measurable operational benefits.

Questions buyers ask

What is the Keling KL-2D electric obstetric table used for?

The KL-2D is a fully electric integrated obstetric table for parturient delivery, gynecological surgery, operative abortion, diagnosis and clinical examination. Its electric drive and remote controller enable smooth, precise positioning without manual handwheel operation, improving workflow efficiency in busy maternity and gynecology departments.

How is the KL-2D different from the manual models KL-2A, KL-2B and KL-2C?

The KL-2D uses an imported brand electric motor controlled by a foot-stepping remote controller, replacing the foot-step hydraulic elevation of the manual models. It is also slightly longer (2000 mm vs 1900–1950 mm) and features a stainless steel hidden auxiliary table with flexible extension, plus a stainless steel sewage basin as standard.

What accessories come with the KL-2D?

The standard accessory set includes a pair of arm resting frames, a pair of leg support frames, a pair of armrests, a stainless steel sewage basin and a foot-stepping remote controller, covering the core positioning, support and fluid management needs for delivery and gynecological procedures.

Is the KL-2D available for export and OEM orders?

Yes. Keling Medical exports obstetric tables to hospitals and medical distributors worldwide through its Shanghai sales and export center and accepts bulk, project and OEM orders. Contact Keling Medical at https://www.kelingmed.com for pricing and specifications.
