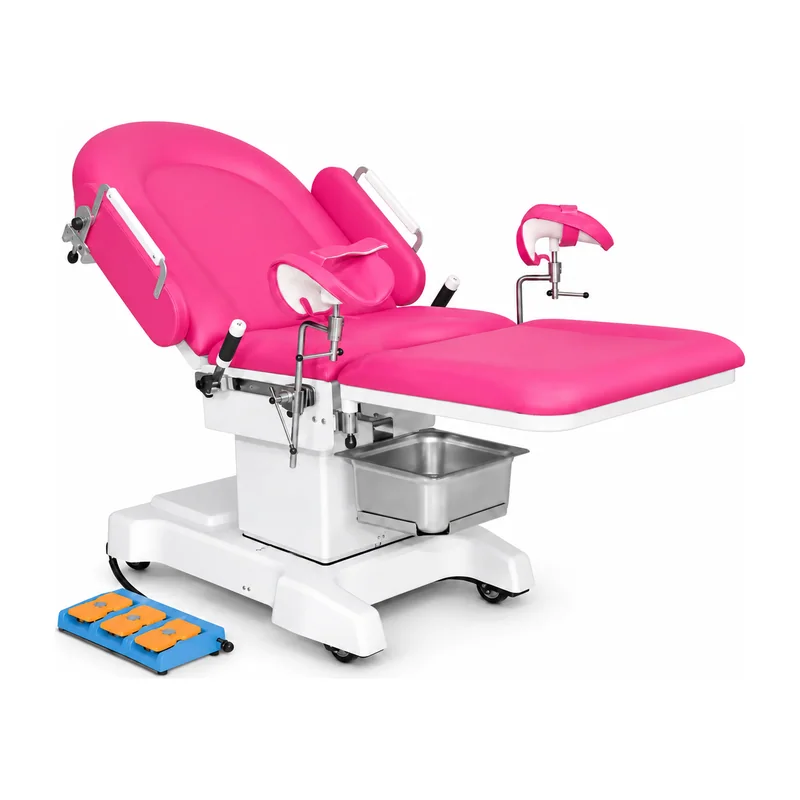

KL-2F Electric Obstetric Table — Wide-Platform Electric Delivery and Gynecological Surgical Table

Quick answer. The Keling KL-2F is a fully electric integrated obstetric table with 1950 ± 50 mm length, 700 ± 20 mm width, height adjustment from 750 to 950 mm (±50 mm), Trendelenburg ≥10°, reverse Trendelenburg ≥12°, backboard upward ≥45° / downward ≥5°, detachable leg plate abduction ≥90°, 304 stainless steel construction, hand-held remote controller and 220V ± 22V 50Hz power supply. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for delivery rooms and gynecological suites.

Height adjustment: (750–950) ± 50 mm
Input power VA: 150 ± 10%
Power supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 1950 ± 50 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling KL-2F electric obstetric table is a premium delivery and gynecological surgical platform that sets itself apart with its wider 700 mm table surface — providing more patient support area during delivery and examination than the standard 600 mm found on other KL-2 models. This additional width enhances stability and comfort for patients during labour, delivery and gynecological procedures, while the fully electric drive system ensures smooth, precise positioning with minimal manual effort.

All positioning functions — backboard, leg plate and height — are controlled electrically via an imported brand motor with a hand-holding remote controller and foot-stepping controls, giving clinical teams complete flexibility to adjust the table without interrupting procedures. The detachable leg support system with ≥90° abduction enables full lithotomy positioning for gynecological examination and minor procedures, and removes entirely when not needed, simplifying cleaning and storage.

The KL-2F is constructed throughout in 304 stainless steel — base seat, column covering and auxiliary components — providing excellent resistance to corrosion and the strong cleaning agents used in obstetric and gynecological environments. Ergonomic high-density cushions ensure comfortable patient positioning across the full range of clinical applications: delivery posture, gynecological examination, semi-reclining treatment and flat resting positions. Power supply is 220V ± 22V, 50Hz ± 1Hz; input power is 150 ± 10% VA.

Quick facts

The Keling KL-2F is a fully electric obstetric table with a notably wider platform at 700 ± 20 mm vs 600 mm on most KL-2 models.
Height adjusts from 750 to 950 mm (±50 mm) by imported brand electric motor with hand-held and foot-stepping remote control.
Trendelenburg is ≥10° and reverse Trendelenburg is ≥12°; backboard raises ≥45° and lowers ≥5°.
The leg plate is detachable with an abduction angle ≥90° to support lithotomy positioning for gynecological examination and procedures.
All major structural components are 304 stainless steel for superior corrosion resistance and ease of decontamination.
A power-attaching plug is included alongside the hand-holding remote controller for flexible operation.

Key features

Wide 700 mm platform
the KL-2F's 700 ± 20 mm table width provides greater patient support area compared to standard 600 mm obstetric tables, improving stability and comfort during delivery.
Fully electric positioning
backboard, leg plate and height all adjusted electrically via imported brand motor; controlled by hand-holding remote controller and foot-stepping controls.
Detachable leg support system
leg plate abducts ≥90° and is fully removable for cleaning, storage or flat-position use; adjustable supports suit diverse clinical applications.
304 stainless steel construction
all major structural components in 304 stainless steel for corrosion resistance and easy decontamination between cases.
Trendelenburg / reverse Trendelenburg
≥10° / ≥12° positions for obstetric and clinical positioning requirements.
Ergonomic high-density cushions
comfortable patient support across all four clinical positions: delivery, gynecological examination, semi-reclining treatment and flat resting.
Stainless steel sewage basin
integrated fluid management for obstetric and gynecological procedures.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

13 parameters for KL-2F

KL-2F technical specifications
Model	KL-2F
Length	1950 ± 50 mm
Width	700 ± 20 mm
Height adjustment	(750–950) ± 50 mm
Trendelenburg	≥10°
Rev-Trend	≥12°
Backboard upwards	≥45°
Backboard downwards	≥5°
Leg plate abduction	≥90° (detachable)
Drive type	Electric (imported brand motor)
Control	Hand-holding remote controller + power-attaching plug
Input power VA	150 ± 10%
Power supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-2F serves hospital delivery rooms, gynecological operating theatres, obstetric intervention suites, outpatient gynecology clinics and women's health centres. The wider 700 mm platform and detachable leg support system make it particularly suited to mixed-use environments where the table must transition efficiently between natural delivery, gynecological examination, minor procedures and routine clinical assessments.

Questions buyers ask

What is the Keling KL-2F electric obstetric table used for?

The KL-2F is a fully electric integrated obstetric table designed for parturient delivery, gynecological surgery, operative procedures, diagnosis and clinical examination. Its wider 700 mm platform and detachable leg support system make it versatile across the full range of obstetric and gynecological clinical activities in hospital and outpatient settings.

What makes the KL-2F different from other KL-2 series models?

The KL-2F is the widest model in the KL-2 series at 700 ± 20 mm, compared to 600 mm on the KL-2A through KL-2E. It also features a detachable leg plate system, a hand-holding remote controller with power-attaching plug, and all-304 stainless steel structural components. The reverse Trendelenburg angle is ≥12°, falling between the KL-2D (≥10°) and KL-2E (≥15°).

What are the four clinical positions supported by the KL-2F?

The KL-2F supports delivery position for natural obstetric care, gynecological examination position with adjustable leg supports, semi-reclining treatment position for minor procedures and ultrasound examinations, and flat resting position for recovery and general clinical use.

Is the KL-2F available for export and OEM orders?

Yes. Keling Medical supplies electric obstetric tables to hospitals and distributors internationally from its Shanghai export center. OEM, bulk and project orders are supported. Contact Keling Medical at https://www.kelingmed.com for quotations.
