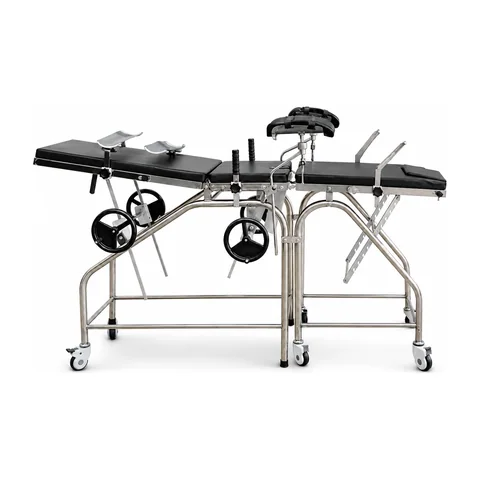

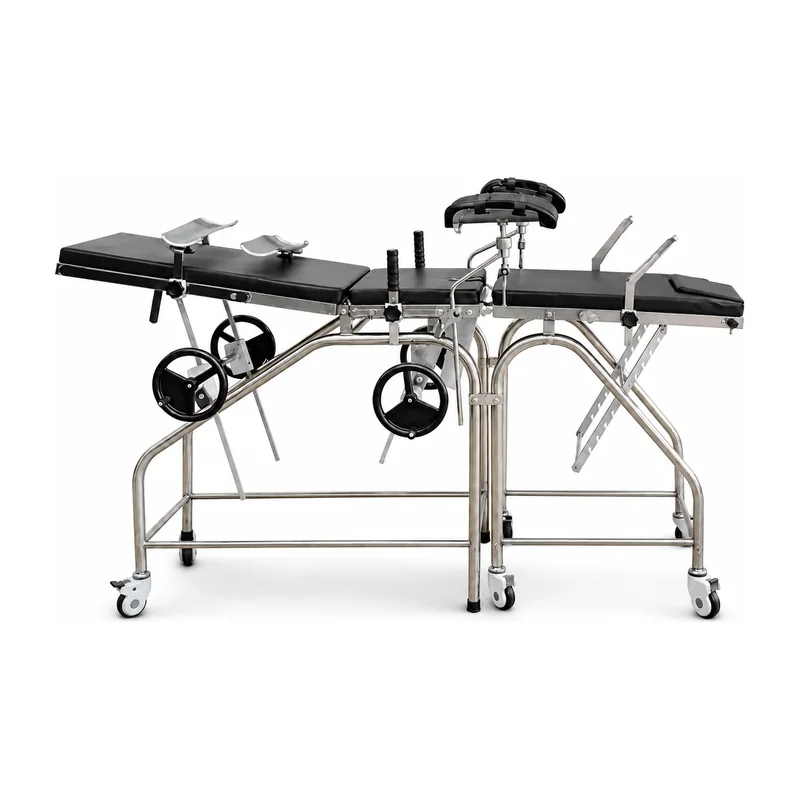

KL-3A Obstetric Table — Manual 304 Stainless Steel Delivery and Gynecological Examination Table

Quick answer. The Keling KL-3A is a manual obstetric table with 1900 ± 50 mm length, 600 ± 20 mm width, fixed height of 750 ± 20 mm, gear-adjusted main bed and ratchet-adjusted auxiliary bed, 304 stainless steel bed body and surface, backboard fold upward ≥50° / downward ≥15°, seat board fold upward ≥30° / downward ≥8°, and leg boards folding ≥30° both up and down. Designed for delivery, prenatal examination, operative abortion and gynecological examination. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height: 750 ± 20 mm (fixed)
Length: 1900 ± 50 mm
Width: 600 ± 20 mm
Back board fold upward: ≥50°

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling KL-3A obstetric table is a robust, all-stainless-steel manual delivery and gynecological examination platform intended for maternity wards, gynecology clinics and obstetric facilities that require a reliable, low-maintenance table with a straightforward mechanical adjustment system. Unlike hydraulic obstetric models, the KL-3A uses gear adjustment for the main bed and ratchet adjustment for the auxiliary bed, providing positive, click-locked positioning that is intuitive to operate and requires no hydraulic fluid maintenance.

Both the bed body and bed surface are manufactured from high 304 stainless steel — a specification that extends corrosion resistance to the patient contact surface itself, not just the structural frame. This makes the KL-3A particularly well suited to environments where heavy cleaning agent exposure is common and where a completely metallic surface is preferred for maximum hygiene assurance. The connected main and auxiliary bed configuration positions clinical instruments and accessories at the foot of the table, while four foot wheels and a brake device on the auxiliary section ensure stable positioning and easy repositioning.

The positioning range covers the core clinical requirements for obstetric and gynecological use: backboard for birthing position, seat board for patient transfer and lithotomy adjustments, and leg boards for support during delivery and examination. The comprehensive accessory package — arm resting frames, leg support frames, armrests and pedal foot boards — equips the KL-3A for the full delivery and examination workflow without supplementary purchases.

Quick facts

The Keling KL-3A is a manual obstetric table with both bed body and bed surface in high 304 stainless steel for durability and easy decontamination.
Overall length is 1900 ± 50 mm, width 600 ± 20 mm, and height is fixed at 750 ± 20 mm.
Main bed functions are adjusted by gear mechanism; auxiliary bed functions are adjusted by ratchet mechanism.
Backboard folds upward ≥50° and downward ≥15°; seat board folds upward ≥30° and downward ≥8°.
The main bed and auxiliary bed are connected, with four foot wheels and a brake device fitted to the auxiliary bed.
Standard accessories include arm resting frames, leg support frames, armrests and pedal foot boards.

Key features

All-304 stainless steel bed body and surface
both the structural bed body and the patient contact surface are 304 stainless steel, providing maximum corrosion resistance and hygiene assurance.
Gear and ratchet manual adjustment
gear mechanism for main bed functions provides positive, reliable positioning; ratchet mechanism on the auxiliary bed gives precise click-locked adjustments.
Connected main and auxiliary bed
integrated two-part design with foot wheels and brake device on the auxiliary section for stable, manoeuvrable clinical support.
Complete accessories
arm resting frames, leg support frames, armrests and pedal foot boards included as standard, covering all core delivery and examination positioning needs.
Backboard range ≥50° upward / ≥15° downward
adequate range for birthing posture, semi-reclined examination and supine rest.
Leg board adjustment ≥30° each way
supports leg positioning for delivery, lithotomy examination and general obstetric care.
Low-maintenance manual system
gear and ratchet mechanism requires no hydraulic fluid, seals or electrical components, minimising maintenance requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-3A

KL-3A technical specifications
Model	KL-3A
Length	1900 ± 50 mm
Width	600 ± 20 mm
Height	750 ± 20 mm (fixed)
Back board fold upward	≥50°
Back board fold downward	≥15°
Seat board fold upward	≥30°
Seat board fold downward	≥8°
Leg board fold upward	≥30°
Leg board fold downward	≥30°
Bed body and surface material	304 stainless steel
Adjustment mechanism	Gear (main bed) / Ratchet (auxiliary bed)

Applications

The KL-3A obstetric table is deployed in hospital maternity delivery rooms, prenatal examination clinics, obstetric intervention suites, family planning departments and gynecological outpatient clinics. The all-stainless-steel construction and gear/ratchet manual adjustment system make it especially suited to facilities prioritising low maintenance requirements, maximum hygiene assurance and straightforward clinical operation without dependence on hydraulic or electrical systems.

Questions buyers ask

What is the Keling KL-3A obstetric table used for?

The KL-3A is a manual stainless steel obstetric table designed for parturient delivery, prenatal examination, operative abortion and gynecological examination. Its all-stainless-steel construction and gear/ratchet adjustment system make it a reliable, low-maintenance choice for maternity and gynecology departments requiring maximum hygiene and mechanical simplicity.

What are the dimensions and height of the KL-3A?

The KL-3A measures 1900 ± 50 mm long and 600 ± 20 mm wide, with a fixed height of 750 ± 20 mm. The fixed height design simplifies the mechanical specification and reduces maintenance requirements compared with adjustable-height models.

How does the KL-3A's adjustment mechanism work?

The main bed functions are adjusted by a gear mechanism that provides positive, locked positioning. The auxiliary bed is adjusted separately by a ratchet mechanism, allowing independent positioning of the auxiliary section. This dual-mechanism approach eliminates hydraulic components and provides intuitive, reliable manual control without fluid or electrical maintenance.

Is the KL-3A available for bulk or export purchase?

Yes. Keling Medical exports obstetric and gynecological tables internationally through its Shanghai sales and export center, accepting bulk, project and OEM orders. Contact Keling Medical at https://www.kelingmed.com for pricing and delivery details.
