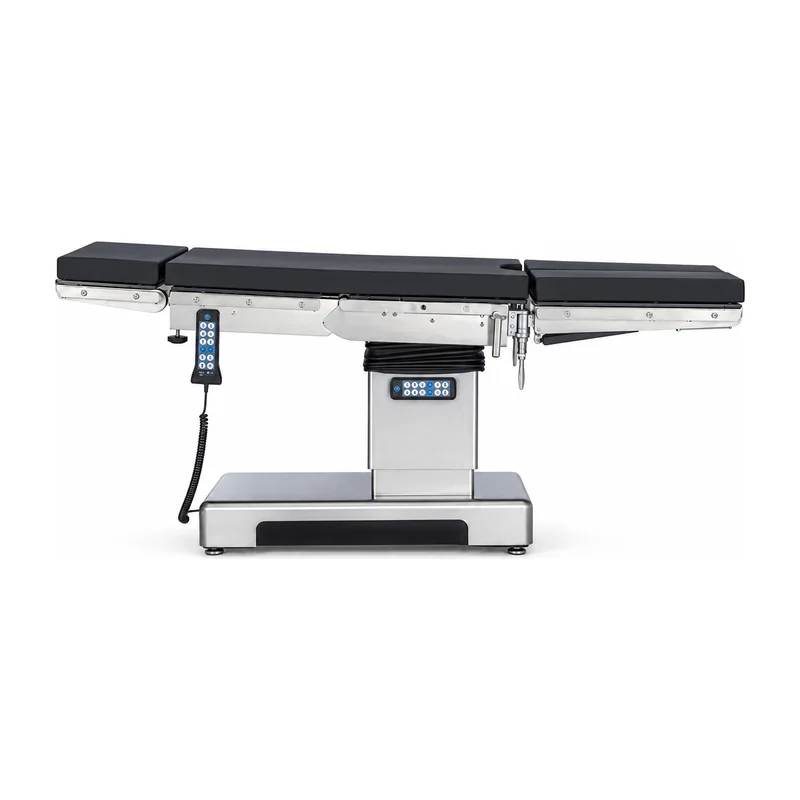

KL-D-IA-II Electric Operating Table — Dual AC/DC Hydraulic Control for Versatile Surgical Positioning

Quick answer. The Keling KL-D-IA-II is an electric operating table with dual AC and DC functions, controlled via a remote controller, featuring a carbon plastic tabletop, height adjustment from 700–1000 mm (± 50 mm), leg plate abduction ≥ 180°, and a lumbar bridge function. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals and medical distributors worldwide.

Height Adjustment: (700–1000) ± 50 mm
Power Supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm
Width: 520 ± 20 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-IA-II electric operating table combines electro-hydraulic precision with dual-power redundancy for reliable intraoperative performance. Operating through both AC mains and DC battery modes, the table continues functioning during power interruptions — an important safety consideration in operating rooms with variable power supply. A one-key reset function returns all table sections to the neutral horizontal position at the touch of a button, streamlining case turnover between patients.

The carbon plastic tabletop is imported and radiolucent, allowing the C-arm fluoroscope to pass through for intraoperative imaging without patient repositioning. Both head board and leg plates are controlled by imported gas springs, providing smooth and stable adjustment without hydraulic dependence for those sections. The splits are fully detachable and interchangeable, giving surgeons unobstructed access for lithotomy, orthopaedic, and abdominal procedures.

The seamless polyurethane mattress — formed from imported artificial leather and high-density memory foam in a single piece — eliminates seam contamination points and is antibacterial, making terminal cleaning faster between surgical cases. The base column is equipped with electric brakes and built-in casters to facilitate controlled table displacement within the OR without manual pushing.

Quick facts

The Keling KL-D-IA-II is an electric operating table suitable for various operations conducted by medical facilities.
Height adjusts from 700 to 1000 mm (± 50 mm) to support patient transfer and surgical positioning.
The table features dual AC and DC functionality with remote controller and direct-current controller, with one-key reset.
Leg plate abduction reaches ≥ 180°, enabling wide lateral spread for urological and gynaecological procedures.
The mattress is imported artificial leather seam-sealed with high-density memory foam, formed at one time.
Head board and leg plates are gas-spring controlled and fully detachable, interchangeable for C-arm positioning.

Key features

Dual AC/DC power with one-key reset
AC and DC dual-function operation ensures continued use during power interruption; one-key reset instantly returns the table to horizontal position.
Remote and panel dual controllers
hand-held remote controller and direct-current panel controller provide flexible control from either side of the table.
Carbon plastic radiolucent tabletop
imported carbon fiber-reinforced plastic plate allows unobstructed C-arm and X-ray imaging intraoperatively.
Gas spring head and leg control
imported gas springs control head board and leg plate movement for smooth, stable adjustment and extended service life.
Leg plate abduction ≥ 180°
wide-range lateral spread supports lithotomy and gynaecological positioning without additional accessories.
Lumbar bridge adjustment
integrated lumbar kyphosis/lordosis control (∧ ≤ 160°, ∨ ≤ 105°) for spinal and abdominal procedure positioning.
Seamless imported mattress
artificial leather over high-density memory foam, one-piece construction, antibacterial and easy to disinfect.
Electric brake casters
facilitate precise OR positioning and stable locking during procedures.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

18 parameters for KL-D-IA-II

KL-D-IA-II technical specifications
Model	KL-D-IA-II
Product type	Electric operating table
Length	2000 ± 100 mm
Width	520 ± 20 mm
Height Adjustment	(700–1000) ± 50 mm
Tilt Left / Tilt Right	≥ 15° / ≥ 15°
Trendelenburg / Rev-Trend	≥ 20° / ≥ 15°
Headboard Upwards	≥ 45°
Headboard Downwards	≥ 90°
Backboard Upwards	≥ 70°
Backboard Downwards	≥ 20°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥ 10°
Leg plate downwards	≥ 90°
Leg plate abduction	≥ 180°
Lumbar lordosis angle "∧"	≤ 160°
Lumbar kyphosis angle "∨"	≤ 105°
Power Supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-D-IA-II is used in general surgery, orthopaedics, urology, gynaecology, abdominal surgery and ENT procedures across hospitals and day-surgery centers. Its dual-power capability, C-arm-compatible tabletop, and wide leg abduction range make it particularly effective in facilities performing lithotomy-position urological or gynaecological surgery with intraoperative fluoroscopy.

Questions buyers ask

What is the Keling KL-D-IA-II electric operating table used for?

The KL-D-IA-II is a multi-purpose electric operating table suitable for general surgery, orthopaedics, urology, gynaecology and imaging-guided procedures. Its dual AC/DC operation, gas-spring head/leg control, and wide leg abduction range make it adaptable to a broad case mix.

What positions does the KL-D-IA-II support?

The KL-D-IA-II supports lateral tilt (≥ 15° each side), Trendelenburg (≥ 20°) and reverse-Trendelenburg (≥ 15°), headboard up (≥ 45°)/down (≥ 90°), backboard up (≥ 70°)/down (≥ 20°), leg plate upwards (≥ 10°), leg plate downwards (≥ 90°), leg plate abduction (≥ 180°), waist board lifting (100 ± 20 mm), and lumbar bridge adjustment.

How does the dual AC/DC function benefit OR workflow?

The KL-D-IA-II operates on both AC mains power and DC battery backup. If mains power is interrupted during a procedure, the table continues functioning without interruption. The one-key reset function also reduces case-turnover time by returning all sections to the flat horizontal position with a single button press.

Can the KL-D-IA-II be ordered for export or wholesale?

Yes. Keling Medical supports wholesale, project, and OEM orders for hospitals and distributors through its Shanghai export center. Detailed quotations and custom configurations are available at https://www.kelingmed.com.
