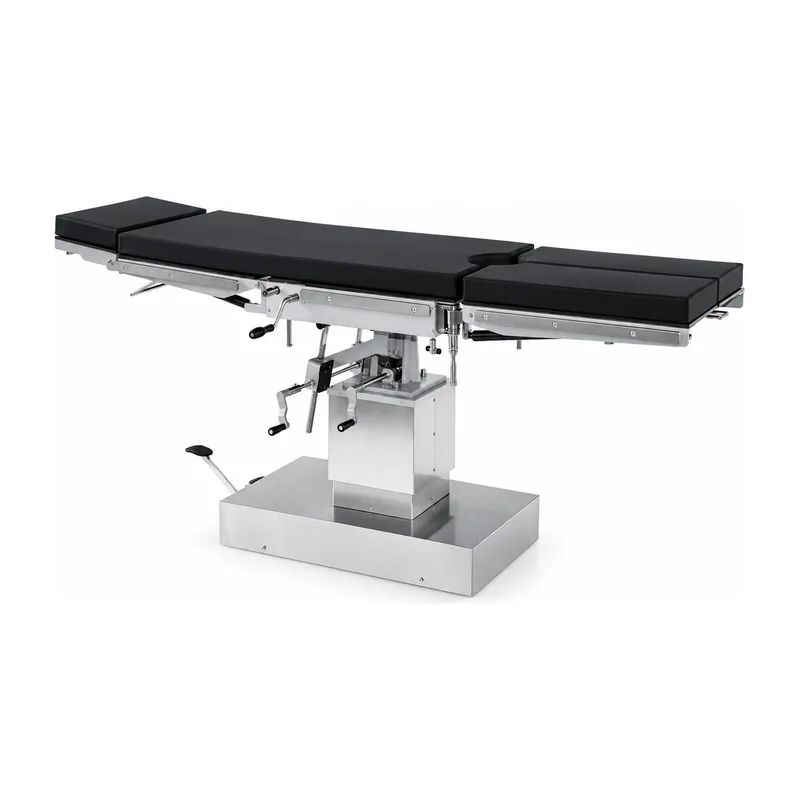

KL-MT100 Manual Hydraulic Operating Table — 304 Stainless Steel Foot-Pump Table for Multi-Specialty Surgery

Quick answer. The Keling KL-MT100 is a manual hydraulic operating table with foot-pump height adjustment from 770–940 mm (± 50 mm), a 304 stainless steel base and column, gas spring-controlled back board and leg plates, bilateral manual controls, sliding function for C-arm and X-ray use, and comprehensive positioning including tilt ≥ 20°/≥ 20° and Trendelenburg ≥ 20°/≥ 15°. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: (770–940) ± 50 mm
Length: 2000 ± 100 mm
Width: 500 ± 20 mm
Tilt Left / Tilt Right: ≥ 20° / ≥ 20°

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-MT100 manual hydraulic operating table delivers a dependable, power-independent surgical table solution for hospitals and clinics where electric-hydraulic tables are not required or where backup capability is a priority. Height adjustment is achieved entirely by foot pump — a robust mechanical system with no electrical dependencies, making the KL-MT100 suitable for facilities with variable or unreliable power infrastructure. The 304 stainless steel base and column are a premium choice for surgical environments requiring rigorous infection control, as stainless steel resists the chemical disinfectants used in OR terminal cleaning without corrosion or surface degradation.

The table comprises head board, back board, waist board, seat board, and leg plates — a full five-section configuration. Back board and leg plates are gas spring-controlled, delivering smooth, stable, and quiet adjustment with no hydraulic circuit involvement. The gas springs are imported quality, providing consistent resistance and durability through high-volume clinical use. All major positional adjustments — tilt, Trendelenburg, back board, leg plates, and waist board — are controlled from both sides of the table simultaneously, allowing the surgical team to adjust without crossing the sterile field.

The sliding function provides 320 ± 30 mm of horizontal tabletop travel, repositioning the patient relative to a fixed C-arm or X-ray unit without moving the table base. This is a standard feature for fluoroscopy-guided orthopaedic and spinal procedures. Accessories include shoulder/waist support, arm rests, leg support, and a screen.

Quick facts

The Keling KL-MT100 is a manual hydraulic operating table with integrated multi-functional design for various operations.
Table lifting is performed by foot pump — a mechanical system requiring no mains power for height adjustment.
The base and column are 304 stainless steel, providing superior corrosion resistance compared to painted or powder-coated alternatives.
Various table actions are controlled bilaterally from both sides of the table, enabling efficient positioning from either the surgical or anaesthetic end.
The back board and leg plates are controlled by imported gas springs for smooth, stable, and tool-free adjustment.
The sliding function allows C-arm and X-ray imaging access without repositioning the patient.

Key features

Foot pump height adjustment
power-independent height adjustment by mechanical foot pump; operates without mains electricity for reliable use in any facility.
304 stainless steel base and column
premium stainless steel construction throughout the base and column for superior corrosion resistance and hygiene compliance.
Bilateral manual controls
all table positioning adjustments operable from both sides, enabling efficient control from either the surgical or anaesthetic position.
Gas spring back board and leg plate control
imported gas springs provide smooth, stable, and quiet back board and leg plate adjustment without hydraulic actuation.
Sliding function for C-arm/X-ray
320 ± 30 mm longitudinal tabletop travel for intraoperative fluoroscopy without patient repositioning.
Five-section table configuration
head board, back board, waist board, seat board and leg plates provide comprehensive patient surface coverage.
Leg plate abduction ≤ 180°
full bilateral leg abduction for lithotomy and urological positioning.
Waist board lifting 100 ± 20 mm
integrated lumbar bridge function for spinal and abdominal procedure support.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

16 parameters for KL-MT100

KL-MT100 technical specifications
Model	KL-MT100
Product type	Manual hydraulic operating table
Length	2000 ± 100 mm
Width	500 ± 20 mm
Height Adjustment	(770–940) ± 50 mm
Tilt Left / Tilt Right	≥ 20° / ≥ 20°
Trendelenburg / Rev-Trend	≥ 20° / ≥ 15°
Headboard Upwards	≥ 40°
Headboard Downwards	≥ 90°
Backboard Upwards	≥ 70°
Backboard Downwards	≥ 15°
Leg plate Upwards	≥ 20°
Leg plate Downwards	≥ 90°
Leg plate abduction	≤ 180°
Waist board lifting	100 ± 20 mm
Longitudinal Movement	320 ± 30 mm

Applications

The KL-MT100 is deployed in general surgery, orthopaedics, urology, gynaecology, ENT and ophthalmic procedures in hospitals and surgical centers where a reliable mechanical operating table with stainless steel construction is preferred. Its sliding function and C-arm compatibility make it effective in fluoroscopy-guided orthopaedic and spinal procedures where power-independent operation is valued.

Questions buyers ask

What is the Keling KL-MT100 manual hydraulic operating table?

The KL-MT100 is a multi-functional manual hydraulic operating table with foot-pump height adjustment, a 304 stainless steel base and column, bilateral controls, gas spring back and leg plate control, and a longitudinal sliding function for C-arm compatibility. It operates without electrical power for height adjustment, making it suitable for various hospital settings.

How does the foot pump height adjustment work on the KL-MT100?

The foot pump on the KL-MT100 is a mechanical hydraulic system: the operator presses the foot pump pedal to build hydraulic pressure that raises the table, and releases a valve to lower it. This mechanism requires no mains electrical supply for height adjustment, distinguishing it from electric-hydraulic models and providing reliable operation in any power environment.

What is the height range of the KL-MT100?

The KL-MT100 adjusts in height from 770 to 940 mm (± 50 mm). While narrower than some electric models, this range covers the standard ergonomic positions used for most general and orthopaedic surgical procedures, from patient transfer height to optimal surgeon operating height.

Can the KL-MT100 be ordered for export or in bulk?

Yes. Keling Medical supplies the KL-MT100 to hospitals and distributors worldwide through its Shanghai sales and export center. Wholesale procurement, project-based orders, and OEM configurations are supported. Contact Keling Medical at https://www.kelingmed.com for pricing and specifications.
