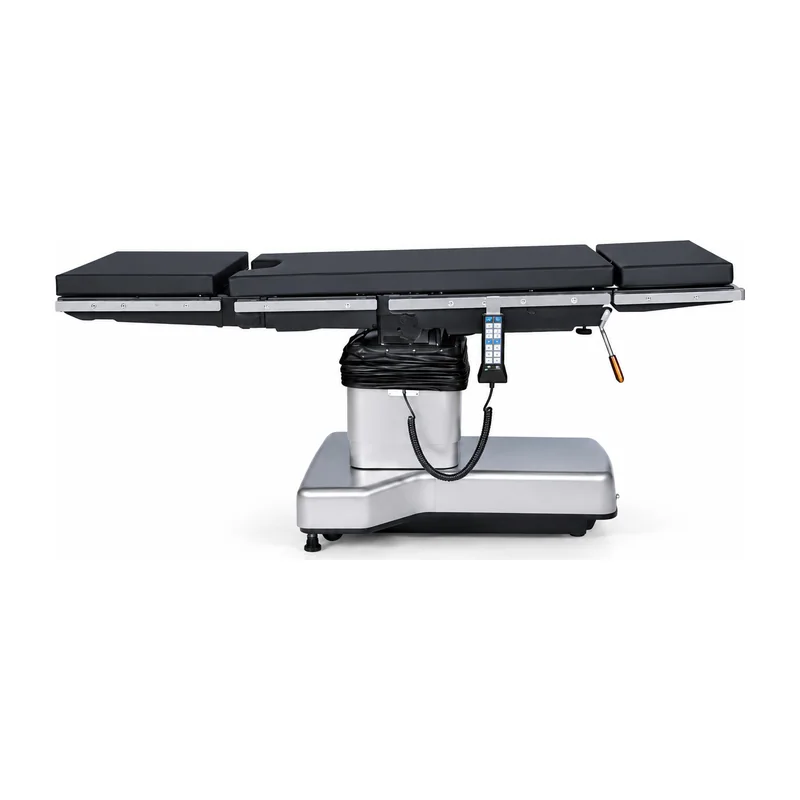

KL-D-V Electric Operating Table — Head Board Converts to Leg Plate for Full-Body Scanning and Inspection

Quick answer. The Keling KL-D-V is an electric operating table whose head board can be inserted into the leg plate position to meet the needs of whole-body C-arm inspection and filming. It features the German HOERBIGER hydraulic system, height adjustment from 720–1100 mm (± 50 mm), Trendelenburg ≥ 20°/reverse-Trendelenburg ≥ 10°, and AC/DC dual-purpose CPU control with one-key reset. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: (720–1100) ± 50 mm
Input power VA: 400 ± 10%
Power Supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-V electric operating table addresses a specific clinical requirement: full-body fluoroscopic inspection and filming without repositioning the patient. By allowing the head board to be physically transferred into the leg plate position, the KL-D-V effectively converts to a fully extended, imaging-compatible surface that supports C-arm scanning of the complete patient length — from head to foot — in a single table position. This is particularly valuable in orthopaedic trauma assessment, spinal imaging, and post-reduction verification where continuous or repeated full-body fluoroscopy is required.

The German HOERBIGER hydraulic system powers height, Trendelenburg, lateral tilt, backboard, and leg plate adjustments through a CPU-managed electro-hydraulic circuit. Both AC mains and DC battery modes are supported, with a one-key reset for rapid case changeover and a dedicated one-key function for lumbar bridge adjustment into "∧" or "∨" position. The dual hand-held remote and direct-panel controller system gives the circulating nurse flexible command from either side of the table.

Construction quality is maintained throughout: the artificial leather surface over seamless high-density memory foam provides comfortable patient support and straightforward decontamination. Stainless steel base covers, side rails, and accessories resist hospital-grade cleaning agents, and the electric-brake casters allow precise OR positioning under load.

Quick facts

The Keling KL-D-V electric operating table allows the head board to be inserted into the leg plate slot for full-body C-arm scanning and X-ray filming.
Height adjusts from 720 to 1100 mm (± 50 mm) using the German HOERBIGER hydraulic system.
AC and DC dual-purpose CPU control with one-key reset and one-key "∧" / "∨" lumbar bridge function is provided.
The mattress is made of imported artificial leather with high-density memory foam, formed at one time with no seams.
Both sides of the table base and accessories are stainless steel, easy to clean and sterilise.
The table is mounted on electric-brake casters, convenient for displacement and repositioning.

Key features

Head board insertable into leg plate position
unique table configuration allowing the head board to convert to a leg extension for full-body C-arm scanning and X-ray inspection without patient repositioning.
German HOERBIGER hydraulic system
internationally recognised hydraulic platform for smooth, stable, quiet table movement across all adjustment axes.
AC/DC dual-purpose CPU control
mains and battery operation with CPU management; one-key reset returns the table to horizontal; one-key "∧" / "∨" function for lumbar bridge.
Wide height range 720–1100 mm
broad adjustment range covering patient transfer through high surgical positioning requirements.
Seamless imported leather mattress
no-seam, high-density memory foam mattress in imported artificial leather; antibacterial and easy to clean.
Stainless steel base and accessories
all external structural and accessory components are stainless steel for corrosion resistance and hygiene compliance.
Electric-brake casters
convenient displacement and stable locking in the OR.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

15 parameters for KL-D-V

KL-D-V technical specifications
Model	KL-D-V
Product type	Electric operating table
Length	2000 ± 100 mm
Width	500 ± 20 mm
Height Adjustment	(720–1100) ± 50 mm
Tilt Left / Tilt Right	≥ 20° / ≥ 10°
Trendelenburg / Rev-Trend	≥ 20° / ≥ 10°
Headboard Upwards	≥ 40°
Backboard Upwards	≥ 80°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥ 75°
Leg plate downwards	≥ 45°
Backboard Downwards	≥ 40°
Input power VA	400 ± 10%
Power Supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-D-V is suited to orthopaedic trauma surgery requiring full-body fluoroscopic inspection, spinal imaging and fixation, general surgery with intraoperative C-arm use, and any scenario where the surgical team needs to film or scan the entire patient without repositioning. It also serves general multi-specialty surgical suites requiring the HOERBIGER hydraulic system's smooth performance.

Questions buyers ask

What is the unique clinical function of the KL-D-V operating table?

The KL-D-V's distinguishing feature is that its head board can be removed and inserted into the leg plate slot, converting the table to a fully extended imaging surface for whole-body C-arm scanning and X-ray filming. This eliminates the need to reposition the patient for head-to-toe fluoroscopic assessment during or after surgery.

What hydraulic system does the KL-D-V use?

The KL-D-V uses the German HOERBIGER hydraulic system — an internationally recognised brand chosen for its smooth, stable, and quiet actuation. The system is managed by a CPU controller and supports both AC mains and DC battery operation, with a one-key reset function.

What is the height range of the KL-D-V operating table?

The KL-D-V adjusts in height from 720 to 1100 mm (± 50 mm). This wide range covers the low-transfer position for patient loading and the elevated positions required for surgeon ergonomics during deep abdominal and orthopaedic procedures.

Can the KL-D-V be purchased through distributors or for export?

Yes. Keling Medical supports wholesale and export orders for the KL-D-V through its Shanghai sales and export center. OEM configurations and project-based procurement are also available. Contact Keling Medical at https://www.kelingmed.com for specifications and quotations.
