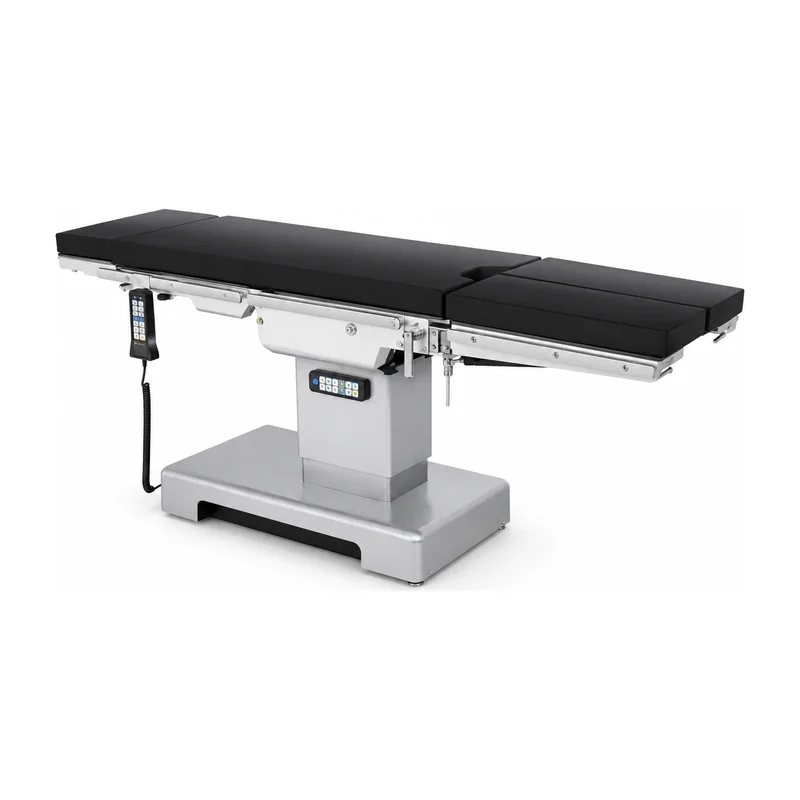

KL-D-III Electric Operating Table — CPU-Controlled Electro-Hydraulic Table for Multi-Specialty Surgery

Quick answer. The Keling KL-D-III is an electric operating table with CPU-controlled electro-hydraulic working principle, height adjustment from 700–1000 mm (± 50 mm), lateral tilt ≥ 20°/≥ 20°, Trendelenburg ≥ 20°/≥ 15°, and a radiolucent carbon plastic tabletop. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals and medical distributors.

Height Adjustment: (700–1000) ± 50 mm
Input power VA: 400 ± 10%
Power Supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-III electric operating table brings CPU-based electro-hydraulic control to a broad range of surgical disciplines. Both AC and DC power modes are supported — with a one-key reset function — so the table maintains full operability in any power situation while case-to-case reset is accomplished at the press of a single button. Positions are commanded through a handheld remote controller and direct panel; both work on the same CPU platform, ensuring consistent and accurate movement across all axes.

The table surface is constructed from imported carbon plastic plate, delivering radiolucency for intraoperative fluoroscopy through the full length of the table. The alloy aluminium forged frame and 304 stainless steel column and base cover combine lightweight construction with the structural rigidity needed to support patient loads across the extended height and tilt ranges. Removable side rails are also 304 stainless steel, keeping all surfaces corrosion-resistant and straightforward to wipe down.

The polyurethane mattress is once-foam-moulded without seams, using imported artificial leather with high-density memory foam. This construction prevents fluid ingress between the mattress and upholstery during fluid-intensive procedures, accelerating terminal cleaning. The foot-operated brake device locks and unlocks the table securely during OR repositioning.

Quick facts

The Keling KL-D-III is an electric operating table suitable for various operations conducted by medical facilities.
Height adjustment range is 700 to 1000 mm (± 50 mm) with electro-hydraulic drive.
Lateral tilt reaches ≥ 20° on each side; Trendelenburg/reverse-Trendelenburg is ≥ 20°/≥ 15°.
The tabletop is made of imported carbon plastic plate, offering radiolucency for C-arm and X-ray imaging.
Actions are controlled by an electro-hydraulic working principle and remote controller with CPU; one-key reset function is supported.
The table is formed with alloy aluminium by forging process, and the column and base cover are 304 stainless steel.

Key features

CPU electro-hydraulic control
processor-managed hydraulic actuation provides precise, repeatable movement across all table axes via remote controller.
AC/DC dual-purpose power with one-key reset
maintains function during power interruption; single-button return to horizontal position streamlines case turnover.
Radiolucent carbon plastic tabletop
imported carbon plate provides clear X-ray and C-arm imaging without repositioning the patient.
Alloy aluminium forged frame
lightweight, high-strength aluminium forged structure with 304 stainless steel column and base cover.
One-piece polyurethane mattress
seamless foam construction from imported artificial leather and high-density memory foam; antibacterial and easy to disinfect.
Foot-operated brake device
conveniently locks and unlocks the table for safe OR repositioning.
Detachable head and leg plates
split, interchangeable head board and leg plates allow unobstructed C-arm access from either end.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

19 parameters for KL-D-III

KL-D-III technical specifications
Model	KL-D-III
Product type	Electric operating table
Length	2000 ± 100 mm
Width	520 ± 20 mm
Height Adjustment	(700–1000) ± 50 mm
Tilt Left / Tilt Right	≥ 20° / ≥ 20°
Trendelenburg / Rev-Trend	≥ 20° / ≥ 15°
Headboard Upwards	≥ 45°
Headboard Downwards	≥ 90°
Backboard Upwards	≥ 70°
Backboard Downwards	≥ 20°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥ 10°
Leg plate downwards	≥ 90°
Leg plate abduction	≥ 180°
Lumbar lordosis angle "∧"	≤ 160°
Lumbar kyphosis angle "∨"	≤ 105°
Input power VA	400 ± 10%
Power Supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-D-III electric operating table is deployed in general surgery, abdominal and thoracic surgery, orthopaedics, urology, gynaecology and neurological procedures. Its wide tilt range (≥ 20° each side) and full leg plate abduction (≥ 180°) support both lithotomy and kidney-bridge positions, making it a versatile choice for mixed-case surgical suites.

Questions buyers ask

What is the Keling KL-D-III electric operating table used for?

The KL-D-III is a multi-purpose electric operating table designed for various surgical procedures in hospitals and medical facilities. Its CPU-controlled electro-hydraulic system, carbon tabletop, and comprehensive range of positions make it suitable for general, abdominal, orthopaedic, urological and gynaecological operations.

What positioning range does the KL-D-III offer?

The KL-D-III supports lateral tilt ≥ 20° on each side, Trendelenburg ≥ 20°/reverse-Trendelenburg ≥ 15°, headboard upward ≥ 45° and downward ≥ 90°, backboard upward ≥ 70°/downward ≥ 20°, leg plate upward ≥ 10°/downward ≥ 90°, leg plate abduction ≥ 180°, waist board lifting 100 ± 20 mm, and lumbar bridge adjustment.

How does the CPU control system work on the KL-D-III?

The KL-D-III uses a CPU-based electro-hydraulic system that processes commands from the handheld remote controller and the built-in panel controller. Both operate on the same processor platform, providing consistent, accurate positioning. The one-key reset function returns the table to a neutral horizontal position with a single button press.

Is the KL-D-III available for export or wholesale purchase?

Yes. Keling Medical supplies hospitals and distributors worldwide through its Shanghai sales and export center. Wholesale and project inquiries, as well as OEM options, are available at https://www.kelingmed.com.
