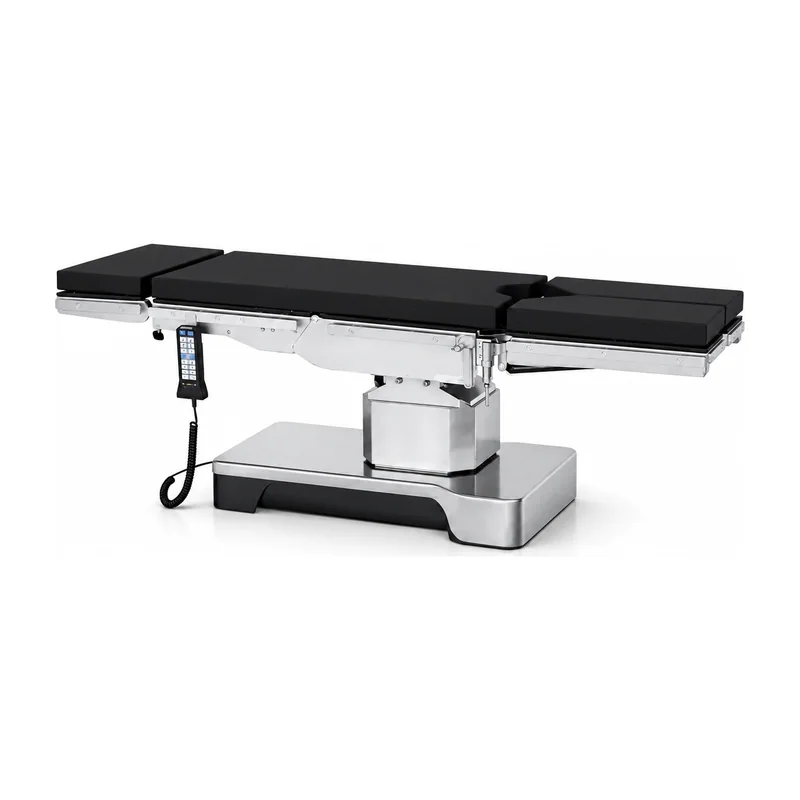

KL-D-III-II Electric Operating Table — High-Range Electro-Hydraulic Table with Extended Trendelenburg and V Position

Quick answer. The Keling KL-D-III-II is an electric operating table with a carbon fiber reinforced tabletop, height adjustment from 650–1100 mm (± 30 mm), Trendelenburg/reverse-Trendelenburg both reaching ≥ 30°, leg plate abduction ≥ 180°, one-key V position, and longitudinal movement of 400 ± 30 mm. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: 650–1100 ± 30 mm
Input Power: 400 ± 10% VA
Length: 2000 ± 100 mm
Width: 520 ± 20 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-III-II electric operating table occupies the top of Keling's KL-D-III electric series, distinguished by its wider height range (650–1100 mm), steeper Trendelenburg angles (≥ 30° in both directions), and an extended longitudinal tabletop movement of 400 ± 30 mm. This combination makes the KL-D-III-II particularly suited to high-tilt procedures — such as pelvic surgery, laparoscopic procedures in steep Trendelenburg, and spinal operations requiring significant head-down or head-up positioning — where competitive tables with smaller tilt ranges may restrict surgical access.

The carbon fiber reinforced tabletop provides a high-strength, radiolucent work surface that accommodates C-arm fluoroscopy through the full length of the table. The imported artificial leather surface over a seamless memory foam mattress provides both infection-control compliance and patient comfort. Dual control modes — hand-held remote and panel controller — are supplemented by a one-key V position function: a single button command that drops the seat and leg sections into a V-configuration for perineal access procedures, eliminating the need for multi-step manual adjustment.

The electric-hydraulic drive system ensures stable, smooth table movements under high patient loads. The side rails and accessories are constructed from 304 stainless steel, and the base is designed with seamless, easily cleanable surfaces. Shoulder support, waist support, arm supports, high-level arm support, leg support and screen are standard accessories.

Quick facts

The Keling KL-D-III-II is an electric operating table with a broader height range of 650–1100 mm (± 30 mm) compared to standard models.
Trendelenburg and reverse-Trendelenburg both reach ≥ 30°, the widest tilt range in the KL-D-III series.
The carbon fiber reinforced tabletop is radiolucent, lightweight, and supports clear C-arm fluoroscopy imaging.
One-key V position and one-key reset functions simplify perineal access and case changeover.
Longitudinal movement of 400 ± 30 mm provides 80 mm more travel than the KL-D-III-I, enhancing imaging flexibility.
Dual control modes — hand-held remote and built-in panel — are supported; imported gas springs control head and leg sections.

Key features

Extended height range 650–1100 mm
the widest height range in the KL-D-III series, covering a broader range of patient transfer and surgical access requirements.
Trendelenburg/Reverse-Trendelenburg ≥ 30°/≥ 30°
steeper tilt in both directions than standard series models, supporting laparoscopic and pelvic procedures with demanding positional requirements.
One-key V position
single-button command positions the table in the V configuration for perineal access and reduces operator steps during complex positioning sequences.
Carbon fiber reinforced tabletop
high-strength, radiolucent carbon fiber tabletop enables full-length C-arm and X-ray imaging without patient repositioning.
Longitudinal movement 400 ± 30 mm
400 mm of horizontal tabletop travel optimises patient positioning for fluoroscopy and surgical access from either end.
Electric-hydraulic drive with dual control
hand-held remote plus panel controller; stable and smooth movements under load with imported gas spring control for head and leg sections.
One-key reset
returns the table to horizontal position with a single button press for efficient case turnover.
304 SS side rails and accessories
corrosion-resistant stainless steel side components for hygienic, durable performance under hospital cleaning protocols.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

18 parameters for KL-D-III-II

KL-D-III-II technical specifications
Model	KL-D-III-II
Product type	Electric operating table
Length	2000 ± 100 mm
Width	520 ± 20 mm
Height Adjustment	650–1100 ± 30 mm
Tilt Left / Tilt Right	≥ 20° / ≥ 20°
Trendelenburg / Reverse Trendelenburg	≥ 30° / ≥ 30°
Headboard Upwards	≥ 50°
Headboard Downwards	≥ 90°
Backboard Upwards	≥ 70°
Backboard Downwards	≥ 40°
Waist Board Lifting	100 ± 20 mm
Leg Plate Upwards	≥ 20°
Leg Plate Downwards	≥ 90°
Leg Plate Abduction	≥ 180°
Horizontal and Longitudinal Movement	400 ± 30 mm
Main Voltage	AC 220V ± 22V, 50 ± 1Hz
Input Power	400 ± 10% VA

Applications

The KL-D-III-II is well-suited to general surgery, laparoscopic surgery requiring steep Trendelenburg, colorectal and pelvic procedures, gynaecological surgery, urological surgery, spinal and orthopaedic operations, and any procedure benefiting from a wide height range or extended fluoroscopic access via the 400 mm longitudinal movement.

Questions buyers ask

What is the Keling KL-D-III-II electric operating table used for?

The KL-D-III-II is a high-specification electric operating table designed for a wide variety of surgical procedures requiring extended tilt range and height adjustment. Its Trendelenburg capacity of ≥ 30° in both directions and one-key V position make it particularly suited to laparoscopic, pelvic, gynaecological and urological surgery.

How does the KL-D-III-II differ from the KL-D-III-I?

The KL-D-III-II offers a wider height range (650–1100 mm vs. 700–1000 mm), steeper Trendelenburg (≥ 30°/≥ 30° vs. ≥ 25°/≥ 25°), greater longitudinal movement (400 mm vs. 320 mm), higher headboard downward angle (≥ 90° vs. ≥ 90°), a greater backboard downward angle (≥ 40°), one-key V position, and standard shoulder/waist/arm/leg support accessories — making it the more feature-complete model in the series.

What does the one-key V position function do on the KL-D-III-II?

The one-key V position on the KL-D-III-II simultaneously adjusts the seat section and leg plates into a V-shaped configuration that provides open perineal access for urological, gynaecological and colorectal procedures. This eliminates the need to manually adjust multiple table sections in sequence, reducing setup time and positioning errors.

Can the KL-D-III-II be purchased wholesale or with OEM branding?

Yes. Keling Medical is an export-oriented manufacturer supporting wholesale procurement, project orders, and OEM configurations for hospitals and distributors worldwide. Inquiries are handled through the Shanghai sales and export center at https://www.kelingmed.com.
