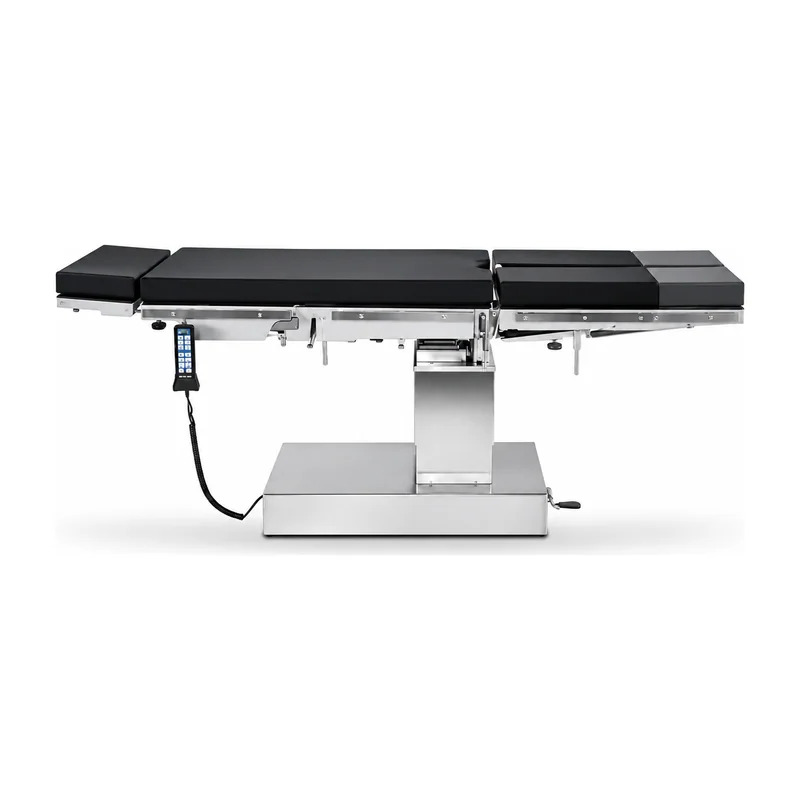

DL·C-I Electric Operating Table — Full Electric Surgical Platform with Longitudinal Movement

Quick answer. The Keling DL·C-I is a full-electric operating table measuring 2000 ± 100 mm long × 500 ± 20 mm wide, with height adjustment from 700 to 950 mm (±50 mm), Trendelenburg/reverse-Trendelenburg ≥20°/≥20°, lateral tilt ≥20°/≥20°, 300 ± 30 mm longitudinal table movement, leg plate abduction ≥180° and a power supply of 220V ± 22V 50Hz ± 1Hz. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height adjustment: (700–950) ± 50 mm
Input power VA: 300 ± 10%
Power supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling DL·C-I electric operating table is a premium full-electric surgical platform that extends the capabilities of the DL·C series with wider lateral tilt (≥20° vs ≥15°), wider Trendelenburg angles (≥20° vs ≥15°) and the addition of 300 mm powered longitudinal table movement. These enhancements make the DL·C-I better suited to demanding multi-specialty environments where a wider positional envelope is required across orthopaedic, laparoscopic, urological and gynecological procedures in a single platform.

The 700–950 mm height range — with a lower floor position than the DL·C — gives surgeons and anaesthetic teams more flexibility to optimise their working height for tall or short patients and varied procedure types. The electric longitudinal slide repositions the patient by up to 300 mm along the table axis, useful for multi-phase procedures such as combined abdominal and perineal resection, and for optimising C-arm positioning during fluoroscopy-guided cases without physical patient transfer.

All positioning actions — height, tilt, Trendelenburg, headboard, backboard, waist board, lumbar bridge and leg plate — are controlled via a hand-held remote controller and an integrated control panel, supplemented by a foot-operated brake device. The table provides lumbar lordosis "∧" up to 150° and kyphosis "∨" up to 120°, with a waist board lifting range of 100 ± 20 mm, covering spinal and complex abdominal positioning needs. Power supply is 220V ± 22V, 50Hz ± 1Hz with 300 ± 10% VA input power.

Quick facts

The Keling DL·C-I is a full-electric operating table 2000 ± 100 mm long and 500 ± 20 mm wide.
Height adjusts from 700 to 950 mm (±50 mm) via quiet electric drive, with a lower minimum height than the DL·C for improved surgical access.
Trendelenburg and reverse Trendelenburg both reach ≥20°; lateral tilt is ≥20° each side — wider than the standard DL·C.
Longitudinal table movement of 300 ± 30 mm allows patient repositioning along the table axis without transfer.
Leg plate abducts ≥180° for full lithotomy access; backboard raises ≥70° and lowers ≥10°.
The DL·C-I is produced by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.), a surgical equipment manufacturer established in 1996.

Key features

Extended tilt range ≥20°
lateral tilt of ≥20° each side and Trendelenburg/reverse-Trendelenburg ≥20° provide a wider positional envelope than the standard DL·C.
300 mm longitudinal table movement
powered slide repositions the patient along the table axis for multi-phase procedures and C-arm optimisation.
Lower height minimum 700 mm
starting height of 700 mm (vs 750 mm on DL·C) increases ergonomic flexibility for diverse procedure types.
Split leg plate ≥180°
full lithotomy access for gynecological, urological and colorectal surgery.
Lumbar bridge adjustment
lordosis "∧" ≤150° and kyphosis "∨" ≤120° with 100 ± 20 mm waist board elevation for spinal and abdominal positioning.
Hand-held remote controller
all functions accessible from a hand-held remote, keeping the surgeon in control without breaking the sterile field.
Foot-operated brake device
secure hands-free table locking for safe movement and repositioning.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

19 parameters for DL·C-I

DL·C-I technical specifications
Model	DL·C-I
Length	2000 ± 100 mm
Width	500 ± 20 mm
Height adjustment	(700–950) ± 50 mm
Tilt left / tilt right	≥20° / ≥20°
Trendelenburg / Rev-Trend	≥20° / ≥20°
Headboard upwards	≥40°
Headboard downwards	≥90°
Backboard upwards	≥70°
Backboard downwards	≥10°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥20°
Leg plate downwards	≥90°
Leg plate abduction	≥180°
Lumbar lordosis angle "∧"	≤150°
Lumbar kyphosis angle "∨"	≤120°
Longitudinal movement	300 ± 30 mm
Input power VA	300 ± 10%
Power supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The DL·C-I serves general surgery, gynecology, urology, colorectal surgery, orthopaedics, laparoscopy and ENT operating rooms. Its extended tilt range and longitudinal movement particularly benefit orthopaedic trauma centres, mixed-specialty theatres and facilities where intraoperative C-arm fluoroscopy requires frequent table repositioning.

Questions buyers ask

What is the Keling DL·C-I electric operating table used for?

The DL·C-I is a full-electric multi-specialty operating table suitable for general, gynecological, urological, orthopaedic, colorectal and ENT surgery. Its extended 20° lateral tilt and Trendelenburg, combined with 300 mm longitudinal movement, make it particularly effective in theatres handling a broad mix of surgical procedures.

How does the DL·C-I differ from the DL·C?

The DL·C-I offers a wider tilt range (≥20° vs ≥15° lateral and Trendelenburg), a lower minimum table height (700 mm vs 750 mm) and powered longitudinal table movement of 300 ± 30 mm. These differences give the DL·C-I a wider positional envelope and greater flexibility for complex or multi-phase procedures.

What is the longitudinal movement function on the DL·C-I?

The longitudinal movement allows the table surface to slide 300 ± 30 mm along the patient's body axis under electric power. This repositions the patient relative to fixed overhead lights or C-arm fluoroscopy equipment without transferring the patient, saving time and reducing transfer-related risks in multi-phase operations.

Is the DL·C-I available for international bulk purchase or OEM supply?

Yes. Keling Medical's Shanghai sales and export center accepts international hospital and distributor orders, including OEM and project-volume configurations. Contact Keling Medical via https://www.kelingmed.com for pricing and customisation options.
