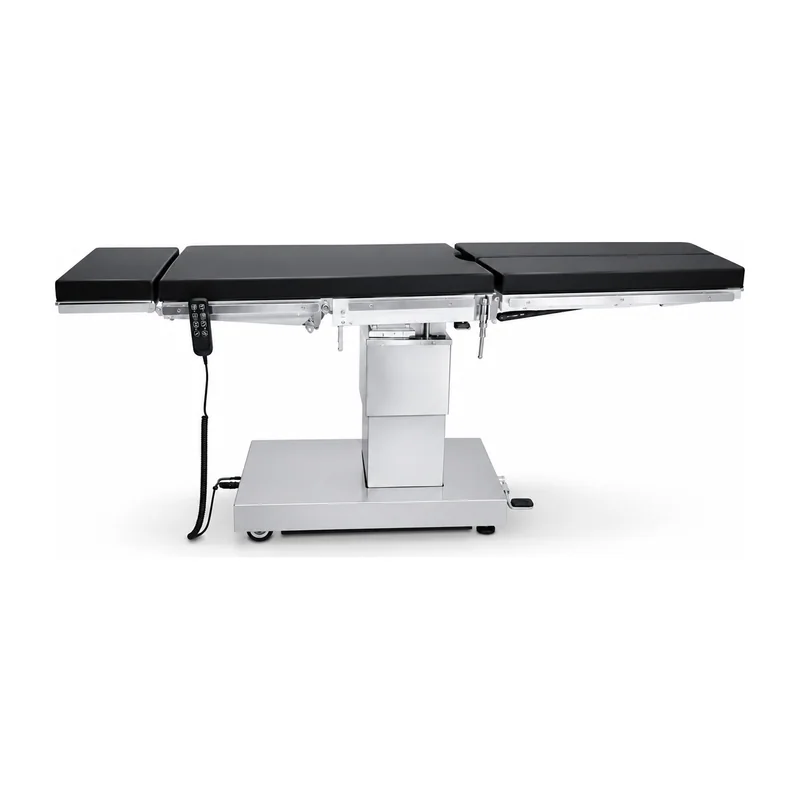

DL·C Electric Operating Table — Electric Hydraulic Surgical Platform with Split Leg Plate

Quick answer. The Keling DL·C is an electric hydraulic operating table measuring 2000 ± 100 mm long × 500 ± 20 mm wide with height adjustment from 750 to 1000 mm (±50 mm), Trendelenburg/reverse-Trendelenburg ≥15°/≥15°, lateral tilt ≥15°/≥15°, headboard upward ≥50°/downward ≥90°, leg plate abduction ≥180°, hand-held remote controller and a power supply of 220V ± 22V 50Hz ± 1Hz. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height adjustment: (750–1000) ± 50 mm
Input power VA: 300 ± 10%
Power supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling DL·C electric operating table combines electric hydraulic drive technology with a comprehensive positioning range to serve a wide variety of surgical specialties in hospital operating theatres. Electric control via a hand-held remote controller and foot-operated brake device allows the surgical team to make precise, quiet adjustments during procedures without manual handwheel operation, reducing physical demand and maintaining positioning accuracy throughout complex cases.

A distinguishing feature of the DL·C is its split leg plate with ≥180° abduction range, which opens full lithotomy access for gynecological, urological and colorectal procedures. The lumbar bridge — with both "∧" lordosis (≤150°) and "∨" kyphosis (≤120°) capability — supports spinal surgery positioning and general patient comfort during extended procedures. The waist board can be elevated 100 ± 20 mm independently, allowing the surgeon to adjust lumbar prominence for improved operative exposure.

The table width of 500 mm and the generous headboard range — from 50° upward to 90° downward — make the DL·C suitable for head-and-neck procedures including ENT, thyroid and maxillofacial surgery. The Trendelenburg and reverse Trendelenburg positions at ≥15° each cover standard requirements for abdominal, pelvic and laparoscopic surgery. Power supply is 220V ± 22V, 50Hz ± 1Hz; input power is 300 ± 10% VA.

Quick facts

The Keling DL·C is a fully electric operating table with length 2000 ± 100 mm and width 500 ± 20 mm.
Height adjusts from 750 mm to 1000 mm (±50 mm) via electric motor with smooth, quiet lifting.
Lateral tilt is ≥15° each side; Trendelenburg and reverse Trendelenburg both ≥15°.
The headboard tilts upward ≥50° and downward ≥90°; backboard upward ≥70° and downward ≥30°.
Split leg plate abducts ≥180°, enabling full lithotomy access for gynecological and urological surgery.
Lumbar lordosis "∧" is ≤150° and lumbar kyphosis "∨" is ≤120°; waist board lifting is 100 ± 20 mm.

Key features

Electric hydraulic positioning
all major functions driven electrically for smooth, quiet and precise adjustment; controlled via a hand-held remote controller.
Split leg plate ≥180°
wide leg abduction enables full lithotomy positioning for gynecological, urological and colorectal procedures.
Lumbar bridge (lordosis/kyphosis)
"∧" and "∨" lumbar adjustments up to 150° and 120° respectively support spinal and complex abdominal positioning.
Waist board elevation 100 ± 20 mm
independent lumbar lifting provides improved operative field exposure without repositioning the whole table.
Headboard range ≥50° up / ≥90° down
extended headboard travel supports head-and-neck procedures including ENT and thyroid surgery.
Foot-operated brake
hands-free table locking for safe movement and secure positioning.
Comprehensive tilt and Trendelenburg
lateral tilt ≥15° each side; Trendelenburg/reverse-Trendelenburg both ≥15° for standard surgical access.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

18 parameters for DL·C

DL·C technical specifications
Model	DL·C
Length	2000 ± 100 mm
Width	500 ± 20 mm
Height adjustment	(750–1000) ± 50 mm
Tilt left / tilt right	≥15° / ≥15°
Trendelenburg / Rev-Trend	≥15° / ≥15°
Headboard upwards	≥50°
Headboard downwards	≥90°
Backboard upwards	≥70°
Backboard downwards	≥30°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥20°
Leg plate downwards	≥90°
Leg plate abduction	≥180°
Lumbar lordosis angle "∧"	≤150°
Lumbar kyphosis angle "∨"	≤120°
Input power VA	300 ± 10%
Power supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The DL·C electric operating table is deployed in general surgery, gynecology, urology, colorectal surgery, ENT, thyroid and head-and-neck surgery, and laparoscopic procedure suites in hospitals and day-surgery centres. The 180° split leg plate and lumbar bridge make it especially productive in gynecology and urology operating rooms where lithotomy and spinal flexion positioning are routine.

Questions buyers ask

What is the Keling DL·C electric operating table used for?

The DL·C is a full-electric surgical table designed for general, gynecological, urological, ENT and laparoscopic surgery. Its 180° split leg plate and lumbar bridge enable the full range of lithotomy, Trendelenburg and spinal positioning required in a mixed-specialty or dedicated gynecology/urology theatre.

What is the height range of the DL·C and how is it controlled?

The table height adjusts from 750 to 1000 mm (±50 mm) via electric motor drive. All positioning — including height, tilt, Trendelenburg, headboard, backboard, leg plate and lumbar bridge — is controlled through a hand-held remote controller. A foot-operated brake device provides hands-free table locking.

Does the DL·C have a lumbar bridge function?

Yes. The DL·C includes a lumbar bridge with two adjustable configurations: lordosis "∧" up to 150° and kyphosis "∨" up to 120°. An independent waist board lifting function adds 100 ± 20 mm of lumbar elevation, providing flexible spinal and abdominal positioning.

Can international buyers purchase the DL·C in bulk or under OEM terms?

Yes. Keling Medical's Shanghai export center handles international hospital and distributor orders including bulk, project and OEM configurations. Reach Keling Medical at https://www.kelingmed.com for current pricing and custom specifications.
