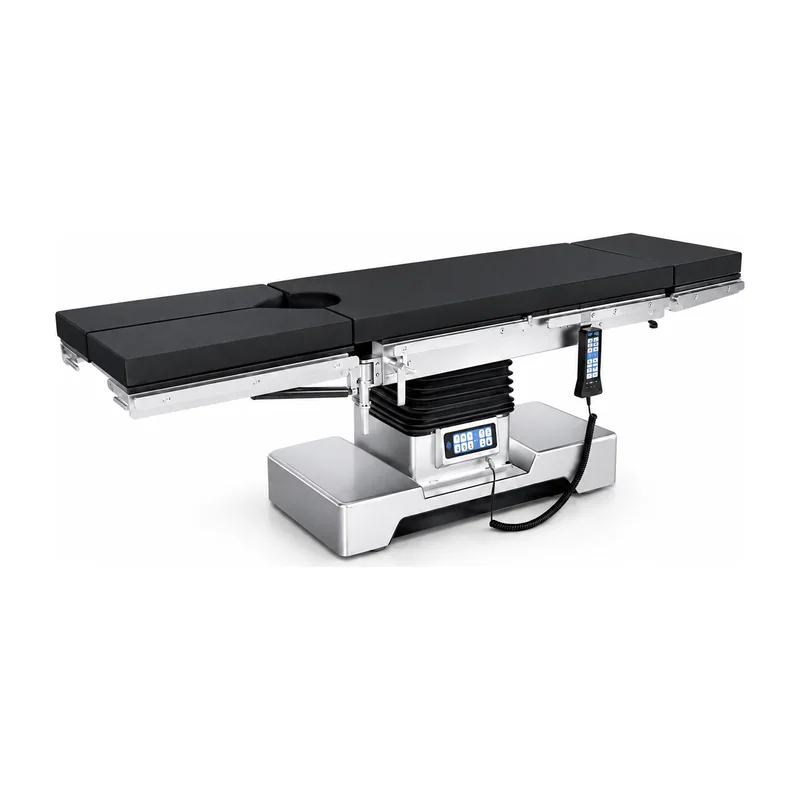

KL-D-III-I(NEW) Electric Operating Table — Updated Electro-Hydraulic Table with LCD Control and Carbon Fiber Top

Quick answer. The Keling KL-D-III-I(NEW) is the updated version of the KL-D-III-I electric operating table, featuring a high-quality carbon fiber-reinforced tabletop, large-screen LCD wireless controller with dual hand-held and panel control modes, self-locking brake function, and height adjustment from 700–1000 mm (± 50 mm). It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Height Adjustment: (700–1000) ± 50 mm
Input power VA: 400 ± 10%
Power Supply AC: 220V ± 22V 50Hz ± 1Hz
Length: 2000 ± 100 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-D-III-I(NEW) electric operating table represents an updated generation of Keling's mid-high-range electric surgical table line, incorporating a German HOERBIGER hydraulic system and an enhanced large-screen LCD controller set. Where the previous KL-D-III-I relied on a standard handheld remote, the NEW version extends this to a dual-mode control platform — the two-controller master hand-held unit and a table-mounted panel — both with a self-locking brake function for added patient safety during position changes.

The carbon fiber-reinforced tabletop meets the same C-arm fluoroscopy compatibility requirements as the earlier model, while the high-density memory foam mattress — formed from artificial leather in a single piece with no seam — provides enhanced pressure distribution and straightforward terminal decontamination. The German HOERBIGER hydraulic circuit ensures quiet, smooth movements across all axes including height, Trendelenburg, lateral tilt, backboard, leg plate, and the full lumbar bridge range.

A notable safety improvement in the NEW model is the anti-pitch and anti-detachable design of the longitudinal and leg board width adjustments. This prevents unintended section release during patient positioning, a meaningful upgrade for high-tilt and extreme-angle procedures. The complete system operates on AC/DC dual power with one-key reset, and the large-screen LCD controller displays operating states clearly for the scrub or circulating nurse.

Quick facts

The Keling KL-D-III-I(NEW) is an updated electric operating table for various operations conducted by medical facilities.
The complete hydraulic system adopts the German HOERBIGER brand for smooth, reliable hydraulic performance.
Height adjusts from 700 to 1000 mm (± 50 mm) via electro-hydraulic drive.
The tabletop is made of high-quality carbon fiber-reinforced plastic with high-density memory foam mattress formed at one time without seams.
Two and two-control modes support: hand-held two-control master controller with panel controller and self-locking brake function.
Longitudinal and leg board width adjustments are anti-pitch and anti-detachable for enhanced safety.

Key features

German HOERBIGER hydraulic system
internationally recognised hydraulic brand adopted for smooth, stable, quiet and durable table movement.
Large-screen LCD dual controller
oversized LCD screen on the hand-held unit displays system status; dual hand-held plus panel controllers provide flexible command from any OR position.
Carbon fiber-reinforced tabletop
radiolucent, high-strength carbon fiber supports clear intraoperative C-arm and X-ray imaging without patient movement.
Self-locking brake function
controller-integrated brake locks the table in position immediately after each movement command to prevent inadvertent drift.
Anti-pitch, anti-detachable leg/longitudinal adjustment
safety design on width and longitudinal adjustments prevents unintended release during extreme-angle positioning.
AC/DC dual power with one-key reset
uninterrupted operation on mains or battery; one-button reset returns all sections to horizontal for rapid case turnover.
Seamless high-density memory foam mattress
imported artificial leather formed at one time, antibacterial, waterproof and seam-free for superior infection control.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

20 parameters for KL-D-III-I(NEW)

KL-D-III-I(NEW) technical specifications
Model	KL-D-III-I(NEW)
Product type	Electric operating table
Length	2000 ± 100 mm
Width	520 ± 20 mm
Height Adjustment	(700–1000) ± 50 mm
Tilt Left / Tilt Right	≥ 20° / ≥ 20°
Trendelenburg / Rev-Trend	≥ 25° / ≥ 25°
Headboard Upwards	≥ 45°
Headboard Downwards	≥ 90°
Backboard Upwards	≥ 70°
Backboard Downwards	≥ 20°
Waist board lifting	100 ± 20 mm
Leg plate upwards	≥ 10°
Leg plate downwards	≥ 90°
Leg plate abduction	≥ 180°
Lumbar lordosis angle "∧"	≤ 160°
Lumbar kyphosis angle "∨"	≤ 105°
Longitudinal Movement	300 ± 30 mm
Input power VA	400 ± 10%
Power Supply AC	220V ± 22V 50Hz ± 1Hz

Applications

The KL-D-III-I(NEW) suits general surgery, orthopaedics, spinal surgery, urological procedures, gynaecology, thoracic surgery and neurosurgery requiring intraoperative fluoroscopy. The German HOERBIGER hydraulic system and enhanced safety features make it appropriate for high-acuity surgical suites where table reliability is critical.

Questions buyers ask

What is the Keling KL-D-III-I(NEW) electric operating table?

The KL-D-III-I(NEW) is an updated version of Keling's KL-D-III-I electric operating table. It incorporates a German HOERBIGER hydraulic system, a large-screen LCD dual controller with self-locking brake, anti-pitch and anti-detachable leg board adjustments, and a seamless carbon fiber-reinforced tabletop — delivering enhanced safety and user experience over the previous model.

What control options are available on the KL-D-III-I(NEW)?

The KL-D-III-I(NEW) supports two control modes: a hand-held two-control master controller and a table-mounted panel controller. Both modes include a self-locking brake function that locks the table position immediately after each adjustment. The large-screen LCD on the hand-held unit displays operating status for easy monitoring.

How does the German HOERBIGER hydraulic system improve performance?

The HOERBIGER hydraulic system — used in the KL-D-III-I(NEW) — is an internationally recognised brand known for precise, smooth and quiet hydraulic actuation. It reduces noise during table movements and provides consistent positioning accuracy across the full height and tilt range, contributing to a stable surgical environment.

Can the KL-D-III-I(NEW) be sourced through distributors or for export?

Yes. Keling Medical supports hospital procurement and distributor wholesale orders for the KL-D-III-I(NEW) through its Shanghai sales and export center. OEM and project configurations are available. Contact Keling Medical at https://www.kelingmed.com for pricing and delivery.
