What is the difference between a labor bed and a delivery table?

A labor bed is designed for comfort over many hours, with a full-length mattress and adjustable backrest. A delivery table is used for the birth itself, with a short or detachable leg section, leg supports, a fluid collection basin and a firmer top. A labor and delivery bed combines both roles so the mother does not have to be moved at the second stage.

What height should a delivery bed be?

A delivery bed should go low enough for the mother to sit down and stand up safely, and high enough for the midwife or obstetrician to work standing at the delivery position. Electric birthing beds commonly adjust within roughly 550–950 mm (22–37 in); manual delivery tables are often fixed or hydraulic within a narrower range around 700–950 mm.

Can a mother give birth in different positions on a birthing bed?

Yes. Modern birthing beds allow semi-sitting, side-lying, kneeling against the raised backrest and supported squatting with a birthing bar or handgrips, in addition to the traditional semi-recumbent position with leg supports. Which positions are used depends on the clinical situation, local protocols and the mother's preferences, guided by the midwife or obstetrician.

An LDR room is a labor, delivery and recovery room where the mother stays in one room and usually one bed from admission to recovery after birth. An LDRP room adds the postpartum stay. LDR rooms need a convertible birthing bed, an infant warmer, medical gases and enough space for an emergency team.

How long does a birthing bed last?

With routine preventive maintenance, a well-built birthing bed typically stays in service for many years; actuators, batteries, castors and upholstery are the parts that wear and are replaced during that time. Ask the manufacturer for the expected service life, recommended maintenance intervals and the availability of spare parts before buying.

Birthing Bed Guide: Labor and Delivery Beds and Tables

Q: What is a birthing bed?

A birthing bed is a hospital bed designed for labor and childbirth. It supports the mother in labor positions, then converts for delivery by retracting or removing the foot section and adding leg supports and handgrips. Most modern birthing beds are electric, with height, backrest and tilt adjustment, so the same bed can be used for labor, delivery and recovery.

Q: What is a spinning birthing table?

The spinning birthing table refers to a 1965 US patent for an apparatus that would spin a mother on a rotating platform to assist birth with centrifugal force. It was never adopted in clinical practice and is not a medical device used in any modern hospital. It appears online as a historical curiosity.

A birthing bed is a labor and delivery bed that supports the mother through labor in comfortable positions, then converts for delivery by lowering or removing the foot section and adding leg supports and handgrips, so she does not have to move to another table. Maternity units choose between convertible electric birthing beds for LDR rooms and dedicated delivery tables for separate delivery rooms.

This guide is for maternity planners, midwifery leads, biomedical engineers and procurement teams. It compares the types of labor and delivery bed, explains the features that matter and ends with a specification checklist.

Birthing bed, labor bed or delivery table?

The three terms describe different products, and choosing the right one depends on how your maternity unit is organized. A labor bed is for comfort during labor, a delivery table is for the birth, and a birthing bed combines both.

Product	Where it is used	Typical features	Best for
Labor bed	Labor ward or first-stage room	Full-length mattress, backrest, side rails	Units that move mothers to a delivery room
Delivery table (obstetric table)	Dedicated delivery room	Short or detachable leg section, leg supports, fluid basin, firm top	High-volume units, district hospitals
Labor and delivery bed (birthing bed)	LDR or LDRP room	Retracting or removable foot section, leg supports, handgrips, electric height and tilt	Units where the mother stays in one room

Many hospitals use both: convertible birthing beds in LDR rooms and robust delivery tables in a central delivery suite or in referral and district hospitals.

How a birthing bed converts for delivery

A birthing bed converts by shortening the foot end of the mattress platform, either by sliding it under the seat section or by removing it, so the clinician can reach the perineum while the mother's legs are supported. Leg supports, foot rests or a birthing bar are then fitted.

When comparing labor and delivery beds, check:

Foot section: retracting (stays attached, faster) or removable (lighter bed, needs storage). Check how quickly one person can convert it.
Seat area: a perineal cut-out and a fluid collection basin or drainage pan under it.
Leg supports: padded knee or calf supports that adjust in height, angle and spread, plus foot rests for pushing.
Handgrips: fixed or folding handles at seat level for the mother to pull on.
Return to bed: after birth, the foot section returns so the bed becomes a recovery bed.

Keling's KL-BC110 Electric Gynecological Birth Bed is a 5-function electric gynecological birth bed with leg support stirrups, a 680–900 mm (26.8–35.4 in) height range, 17±5° Trendelenburg and reverse Trendelenburg tilt, a 240 kg (529 lb) safe working load and optional battery backup.

Electric vs manual delivery beds

An electric birthing bed is the standard choice for LDR rooms where the mother changes position often and staff need to adjust the bed quickly. Manual hydraulic delivery tables remain widely used in district hospitals and in regions with unreliable power, because they have fewer parts to fail.

Electric beds move height, backrest and often seat tilt and Trendelenburg from a handset or foot control. Battery backup keeps the bed working during power interruptions and when it is moved between rooms. The KL-2E Electric Obstetric Table is a fully electric integrated obstetric table with a 700–950 mm height range and stainless steel construction.

Manual hydraulic delivery tables use a foot pump to raise the top and gas springs, gears or ratchets for the backrest and sections. The KL-2A / KL-2B Manual Obstetric Tables are manual hydraulic obstetric tables with foot-step hydraulic elevation, 750–950 mm height adjustment and an auxiliary table. The 304 stainless steel KL-2C Manual Obstetric Table is another manual option.

For a broader comparison of drive types in beds, see electric vs manual hospital beds.

Positions and movements that matter

Birthing beds should support the positions your midwives and obstetricians use, not just the traditional semi-recumbent position. The bed's movement ranges decide which positions are possible.

Backrest: from near-flat to upright sitting; an upright backrest also lets the mother kneel and lean over it.
Seat tilt: lifts the pelvis toward the clinician without the mother sliding down.
Trendelenburg and reverse Trendelenburg: tilting the whole bed head-down or head-up quickly is important for obstetric emergencies managed under local protocols.
Height: a low position for getting in and out safely, and a high position for delivery and procedures.
Flat position: a quick return to flat for resuscitation or transfer.

Side-lying, kneeling and supported squatting usually need handgrips, a birthing bar or a squatting support. Follow your unit's clinical protocols on positions and emergency procedures.

Height, width and load

Dimensions decide both comfort and staff safety. A wide, low bed is easier to get into and safer during labor; a high working position spares the backs of staff who deliver standing.

Height range: compare the lowest position (for getting in and out) and the highest (for delivery). The difference matters more than the absolute numbers.
Width: delivery tables are typically about 600 mm (23.6 in) wide; LDR beds are often wider for comfort. The KL-2F Electric Obstetric Table electric obstetric table has a 700 mm (27.6 in) width and detachable leg plates.
Length in the bed position and in the delivery position, and the overall footprint with leg supports fitted.
Safe working load: check it covers your population, including bariatric patients, at all positions.
Castors: central braking and a steering castor help if the bed will move to theatre for a cesarean section.

Upholstery, hygiene and fluid management

Delivery beds face more fluid than almost any other hospital bed, so cleaning is a core requirement, not an afterthought. Specify:

seamless, fluid-proof mattress covers that tolerate your disinfectants
a removable stainless steel or plastic basin and drainage under the seat
sealed or covered actuators and electronics
smooth frames without gaps where fluid can collect
mattress sections that separate for cleaning and can be replaced individually

Ask the manufacturer which disinfectants are approved and what the cleaning instructions in the IFU require.

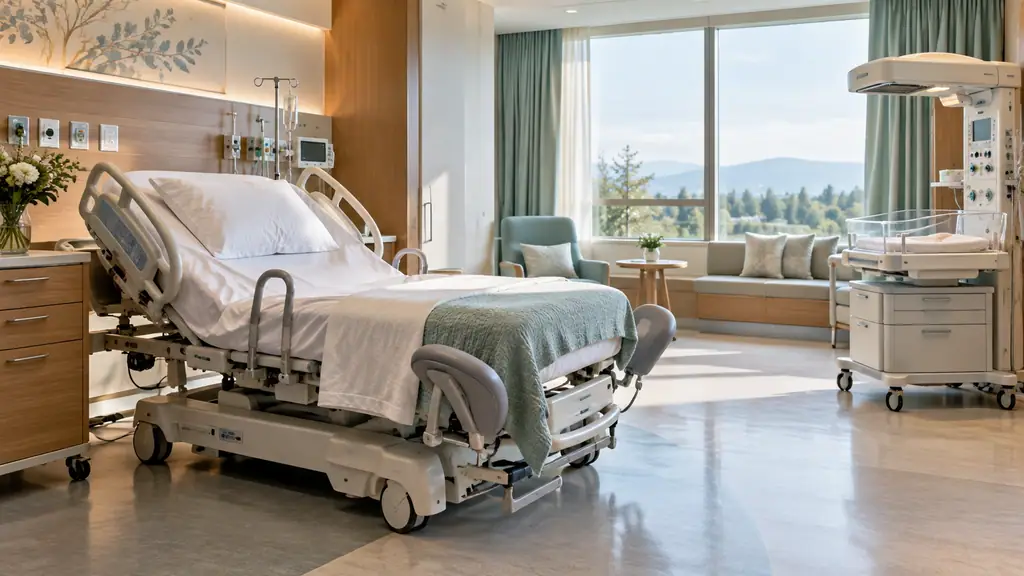

The LDR room around the birthing bed

A birthing bed is the center of the LDR room, but the room needs other equipment within reach. Plan the bed position first, then place the infant resuscitation area, gases and lighting around it.

Item	Purpose
Infant warmer and resuscitation area	Newborn assessment and resuscitation
Bassinet or baby crib	Newborn care in the room; see hospital bassinets and cribs
Baby scale	Weighing at birth
Medical gas outlets (oxygen, vacuum)	For mother and newborn
Examination or procedure light	Repair and examination after birth
Instrument and delivery trolley	Delivery packs and instruments
Recliner or companion chair	Birth partner seating

Keep a crash cart and access to an operating room for emergency cesarean section. Gynecological examination rooms in the same unit have different needs; see the gynecological examination chair guide.

Service, maintenance and lifetime cost

A birthing bed works hard: it is converted several times a day, cleaned after every birth and moved between rooms. Lifetime cost depends as much on maintenance and spare parts as on the purchase price.

Actuators and control boxes on electric beds should be sealed against fluids; ask about ingress protection and expected cycle life.
Batteries age and need replacing every few years; check the replacement interval and whether the battery is a standard part.
Hydraulic pumps on manual delivery tables need periodic checks for leaks and correct lowering speed.
Upholstery and mattress sections wear first; order spare covers with the beds so a damaged section never takes the bed out of service.
Castors and brakes should be replaceable without special tools.

Ask suppliers for the preventive maintenance schedule, a recommended spare parts list for two years, the service manual and training for your biomedical engineers. A unit with several identical beds can keep one set of spares for all of them, which is another reason to standardize on a single model.

What is a spinning birthing table?

The spinning birthing table is a 1965 US patent for a rotating platform that would use centrifugal force to help deliver a baby. It was never adopted clinically and is not used in maternity care. It circulates online as a curiosity; real delivery tables and birthing beds rely on positioning, not rotation.

Birthing bed specification checklist

Use this checklist in tenders so suppliers quote comparable delivery beds:

Type: labor bed, delivery table or convertible labor and delivery bed.
Drive: electric (with battery backup) or manual hydraulic.
Height range, backrest range, seat tilt, Trendelenburg and reverse Trendelenburg in degrees.
Foot section: retracting or removable; conversion time.
Leg-support style, foot rests, handgrips, birthing bar.
Width, length, footprint and safe working load.
Mattress and upholstery material, basin, approved disinfectants.
Castors and brakes; side rails if used as a recovery bed.
Power supply, plug type and battery runtime for electric models.
Documents: the manufacturer's ISO 13485 certificate, electrical safety test reports to IEC 60601-1, instructions for use in the required language and registration for your country.

Next steps

Decide whether your unit works with LDR rooms, separate delivery rooms or both, then match bed types and quantities to each. Keling Medical manufactures electric birthing beds and manual and electric obstetric tables in its ISO 13485-certified factory, together with baby cribs and maternity furniture. Browse the operating tables range, including obstetric tables, and hospital beds, or send your maternity room list for a quotation.
